PoE slēdzis

GS105P

Pārskats
Funkcijas
Specifikācijas
Lejupielādēt

Reliable PoE for 24/7 Consistent Operation

IEEE 802.3at/af. Up to 30W Per Port.

Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.

PoE Auto Recovery

Watchdog will be enabled under VLAN and Extend modes, and if a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.

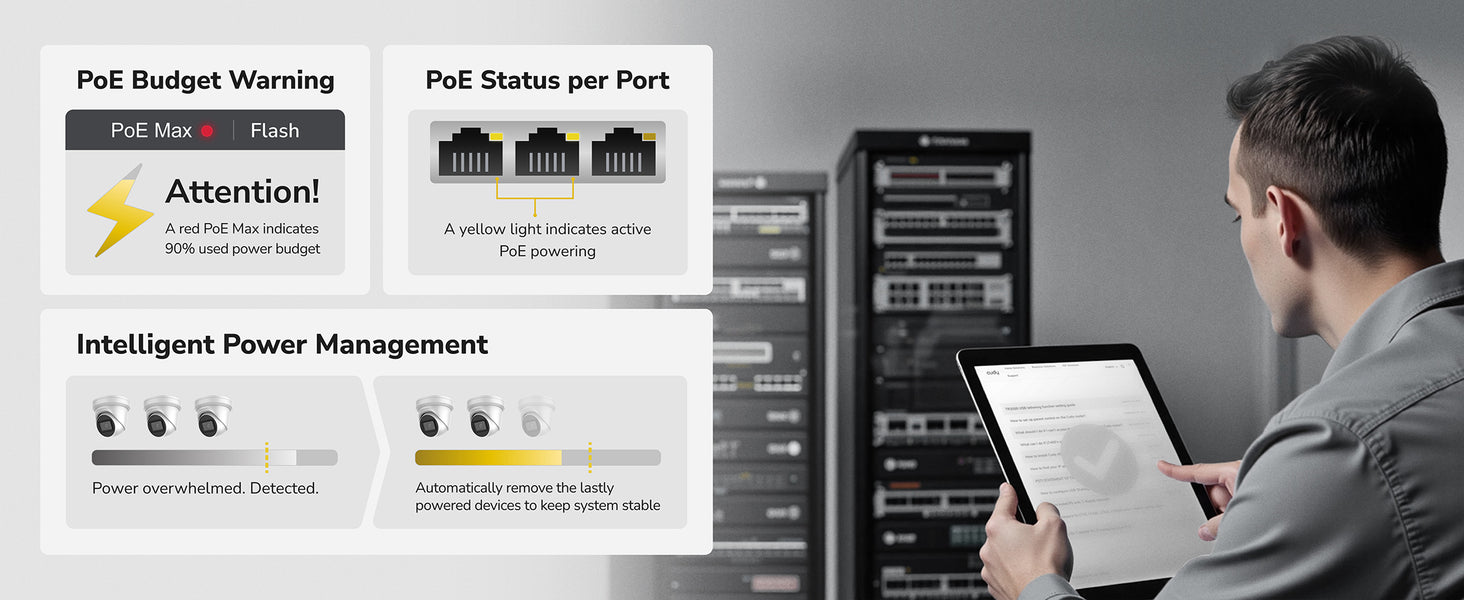

Vienkārša PoE pārvaldība

Paplašināt PoE pārklājumu. Uzlabot klientu drošību.

Paplašināt līdz 250 m Pārraide

For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.

VLAN izolē lejupsaites portus, lai uzlabotu drošību

Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.

Viegla uzstādīšana. Izturīga aizsardzība.

Ieslēdz un atskaņo

Connect your router to the uplink port, client devices to PoE ports, and power on the PoE switch—then you're good to go.

Ietilpst sadales kastē

Viegli iekļaujas lielākajā daļā sadales kastu un padara kabeļu pārvaldību vieglu.

Aizsargājiet klientus ar izcilu EMC

Shield your cameras and access points, from surges in power grid and ESD, delivering rock-solid reliability.

ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV

Metāla korpuss. Gatavs uzstādīšanai pie sienas.

Metāla korpuss nodrošina tīkla centrmezglam vienkāršību un aizsardzību. Nepieciešams ietaupīt grīdas platību? Komplektā ir iekļauts sienas montāžas komplekts, kas jums palīdzēs.

Daudzpusīgi scenāriji

Uzraudzība

Biroja tīklu veidošana

Campuses Wi-Fi

Piekļuves un norādes

NaN -Infinity

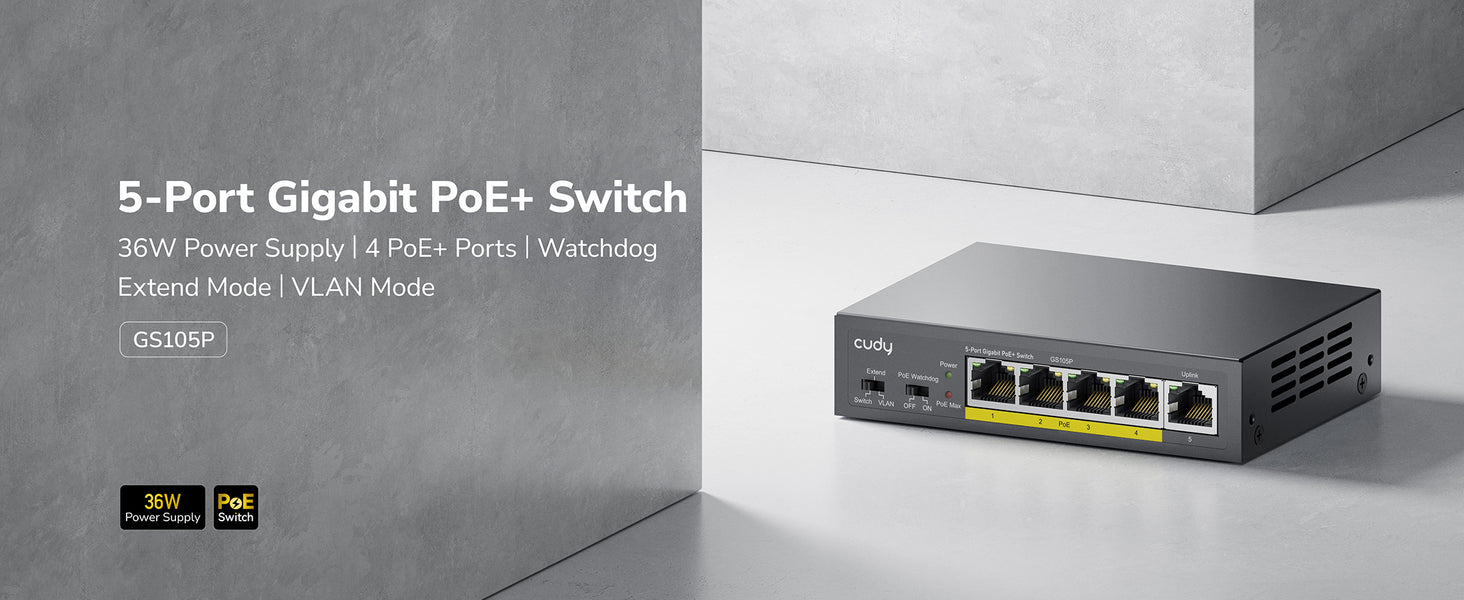

5 portu gigabitu PoE+ komutators

5 portu gigabitu PoE+ komutators, GS105P 1.0

GS105P 1.0

Product variants

Na sienas montējams PoE slēdzis ar 36 W barošanas avotu un klusu dzesēšanas sistēmu, kam ir noklusējuma / paplašināšanas / LAN režīma slēdzis un Watchdog ieslēgšanas / izslēgšanas slēdzis.

4 × GbE ar 802.3at/af A režīma PoE
1 × GbE augšupejošais savienojums
36 W barošanas avots
Default/VLAN/Extend Modes
Uzraudzītāja ieslēgšana/izslēgšana
PoE Max statusa LED
Galda virsma, pie sienas
119 × 85 × 28 mm (4,69 × 3,35 × 1,1″)

View full details

Modeļa versija
Modeļa versija	GS105P 1.0
Interfaces
Interfaces	Gigabit RJ45 Ports	5
	Gigabit RJ45 PoE Ports	#1~#4
	Max Power on a Single PoE Port	30W
	PoE Port Notes	The PoE ports comply with IEEE 802.3at/af standards.
	PoE Priority	Intelligent Power Management: Automatically disconnect the lastly powered device when power exceeds budget.
	Shielded RJ45 Port	True
	Extend Mode Ports	#1~#4
	VLAN Mode Ports	#1~#4
	LED	Power PoE Status of Each PoE Port Link/ACT of Each Ethernet Port PoE Max Status
	Power Input	DC Jack
	Physical Buttons	VLAN/Default/Extend DIP Switch PoE Watchdog On/Off
	Watchdog Note	The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Performance
Performance	Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps
	Copper Speed and Distance Note	250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
	MAC Address Table	2048
	Max Switching Capacity	10 Gbps
	Max Forwarding Rate	7.44 Mpps
	Jumbo Frame	15 KB
	Packet Buffer	3 Mbit
Power
Power	Power Methods	DC
	DC	54V⎓0.66A
	Power Adapter	Input: 100-240V~, 50/60Hz Output: 54V⎓0.66A
	Power Supply	36W
	Max Power Excluding PoE	4W
Switching
Switching	802.3 Protocols	802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3x Flow Control 802.3af PoE 802.3at PoE
	PoE Management	Intelligent Power Management
Reliability
Reliability	Grounding Methods	Three-Prong Plug
	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
	Environment	Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~70℃ (-40~158 ℉) Operating Humidity: 10~90% non-condensing Storage Humidity: 10~95% non-condensing
Mechanical
Mechanical	Dimension	119×85×28 mm 4.69×3.35×1.1 inches
	Product Weight	253.6 g (8.95 oz.)
	Casing Material	Metal
	Installation	Desktop Wall-mount
Package Content
Package Content	GS105P Power Adapter Power Cord Installation Guide
Ordering Information
Ordering Information	Retail Package Dimension	165×123×60 mm 6.5×4.84×2.36 inches
	Retail Package Weight	EU: 580.0 g (20.46 oz.)
	Units per Carton	20
	Carton Net Weight	EU: 11.1 kg (24.47 lbs)
	Carton Gross Weight	EU: 11.6 kg (25.57 lbs)
	Carton Dimension	37.6×26.4×33.8 cm 14.8×10.39×13.31 inches
