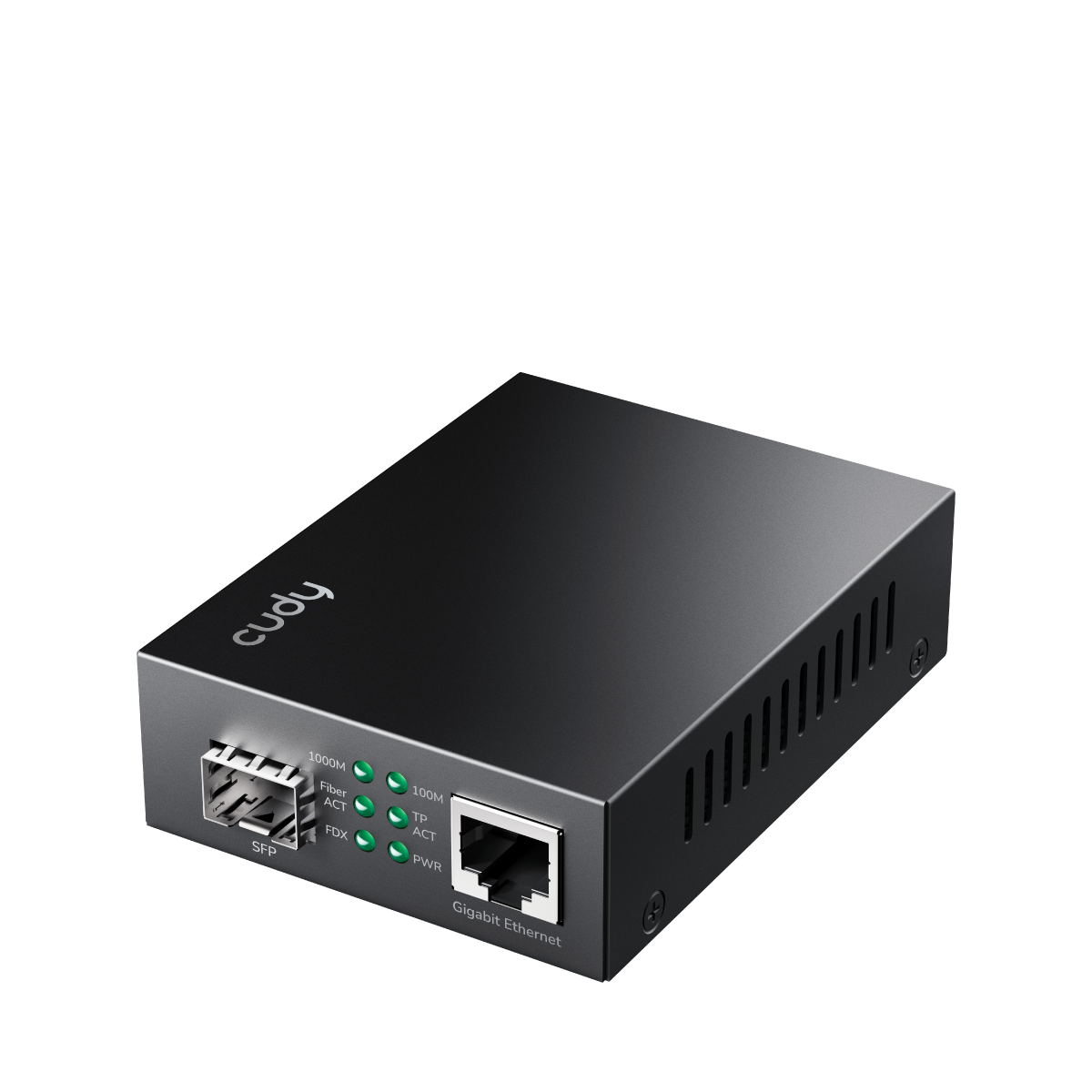

Medijos keitiklis
MC220

Momentinė tinklo stebėsena su įmontuotais LED indikatoriais

With built-in LED indicators, you can easily check the working status of the device. The network status is instantly visible, making it simple to monitor and troubleshoot at a glance.

Momentinė tinklo stebėsena su įmontuotais LED indikatoriais

With built-in LED indicators, you can easily check the working status of the device. The network status is instantly visible, making it simple to monitor and troubleshoot at a glance.

Patikimas didelės spartos perdavimas be greičio nuostolių

The all-in-one module delivers exceptional optical and electrical performance, ensuring long-term data transmission stability.

Įjunkite ir naudokite, nereikalaujama sąrankos

Simply plug in the port, and it’s ready to go—instant connection with no configuration needed. Easy to use, with fast and responsive performance.

Universalūs scenarijai

1 3

Gigabitinio eterneto laikmenos keitiklis

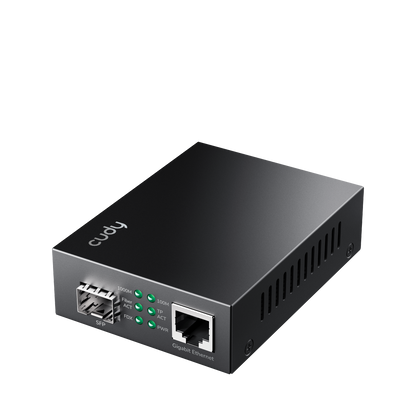

Gigabitinio eterneto laikmenos keitiklis, MC220 2.0

MC220 2.0

10/100/1000 Mbps RJ45 į SFP lizdą medijos keitiklis, skirtas perduoti duomenis dideliais atstumais.

  • Gigabitinis RJ45 prievadas į SFP lizdą
  • Hot-Swappable on RJ45 and SFP
  • LFP ir FEF trikčių šalinimui
  • Greičio, sąsajos, FDX, PWR LED
View full details
Modelio versija
Modelio versija MC220 2.0
Interfaces
Interfaces 1.25G SFP Slots 1
SFP Hot Swapping True
Gigabit RJ45 Ports 1

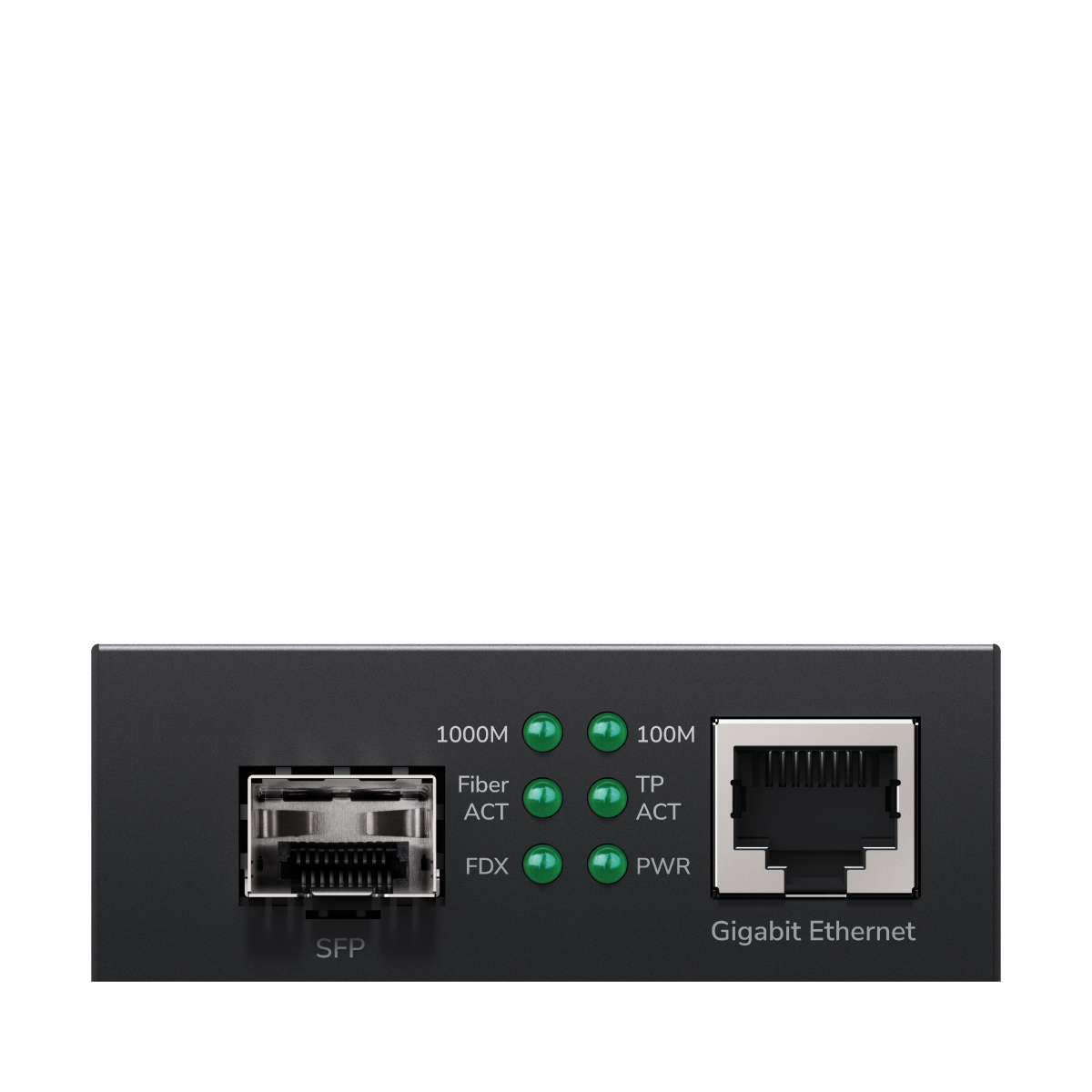

LED
  • PWR: Power on/off
  • 1000M/100M: RJ45 link speed
  • TP ACT: RJ45 status
  • Fiber ACT: Fiber slot status
  • FDX: full-duplex status
Power Input DC Jack
Performance
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
Optical Spec and Distance Depends on the Installed Optical Module
Jumbo Frame 16 KB
Power
Power Power Methods DC
DC 5V⎓0.55A
Power Adapter Input: 100-240V~, 50/60Hz
Output: 5V⎓0.55A
Max Power Consumption 2.3W (45°C / 113°F Ambient Temp.)
1W (20°C / 68°F Ambient Temp.)
Idle Power Consumption 0.5W
Network
Network 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-T
  • 802.3ab 1000BASE-T
  • 802.3x Flow Control
  • 802.3az Power Saving
Troubleshooting
  • Far End Fault (FEF)
  • Link Fault Pass Through (LFP)
Reliability
Reliability Environment Operating Temperature: 0~50 ℃ (32~122 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Mechanical
Mechanical Dimension 70×94×26 mm
2.76×3.7×1.02 inches
Product Weight 142.0 g (5.01 oz.)
Casing Material Metal
Installation
  • Desktop
  • Chassis

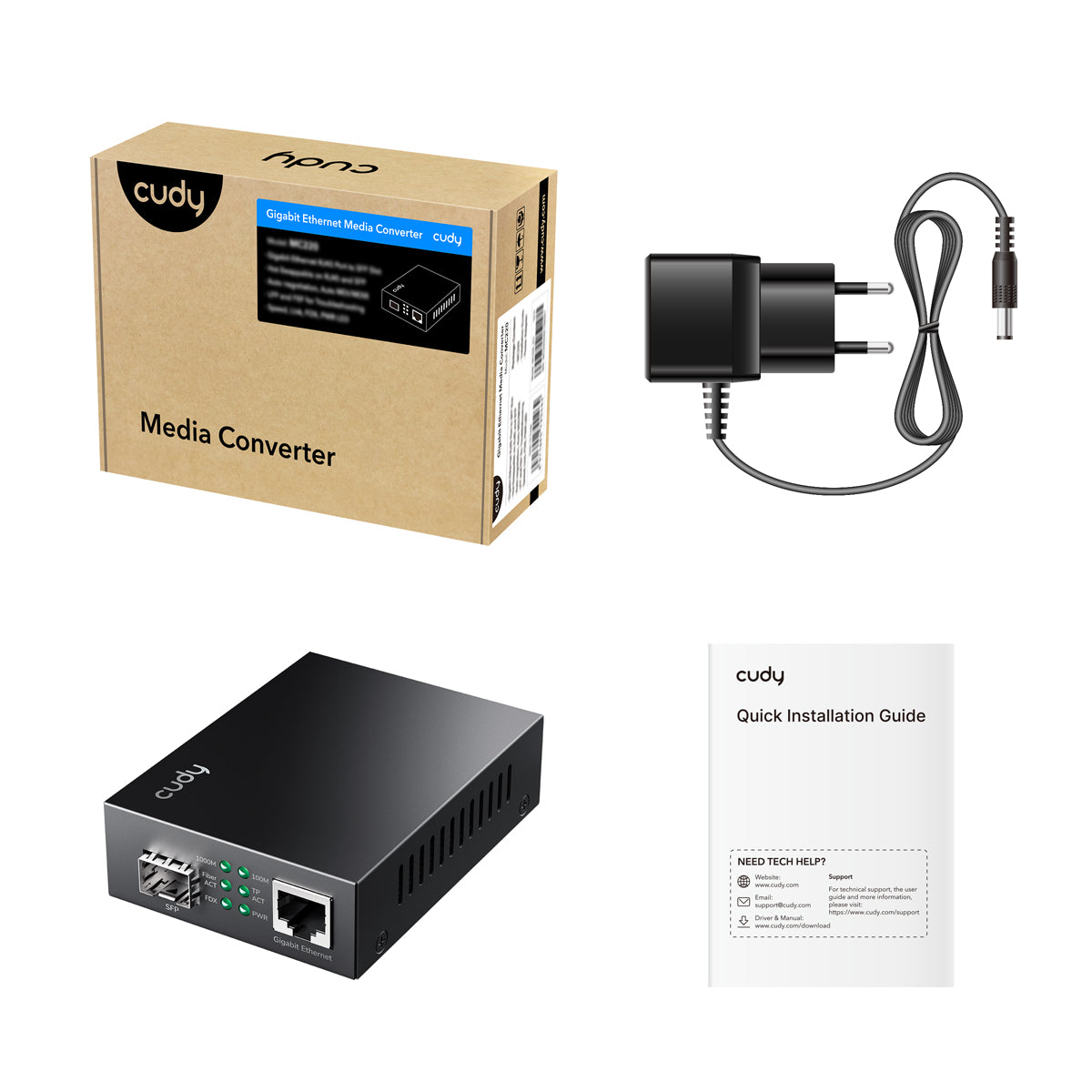

Package Content
Package Content
  • MC220
  • Installation Guide
  • Power Adapter
Ordering Information
Ordering Information Retail Package Dimension 185×129×56 mm
7.28×5.08×2.2 inches
Retail Package Weight EU: 327.5 g (11.55 oz.)
Units per Carton 40
Carton Net Weight EU: 13.1 kg (28.88 lbs)
Carton Gross Weight EU: 14.0 kg (30.86 lbs)
Carton Dimension 53.7×30.3×39.1 cm
21.14×11.93×15.39 inches
