    8 prievadų šviesolaidinis valdomas Gigabitinis valdomas komutatorius

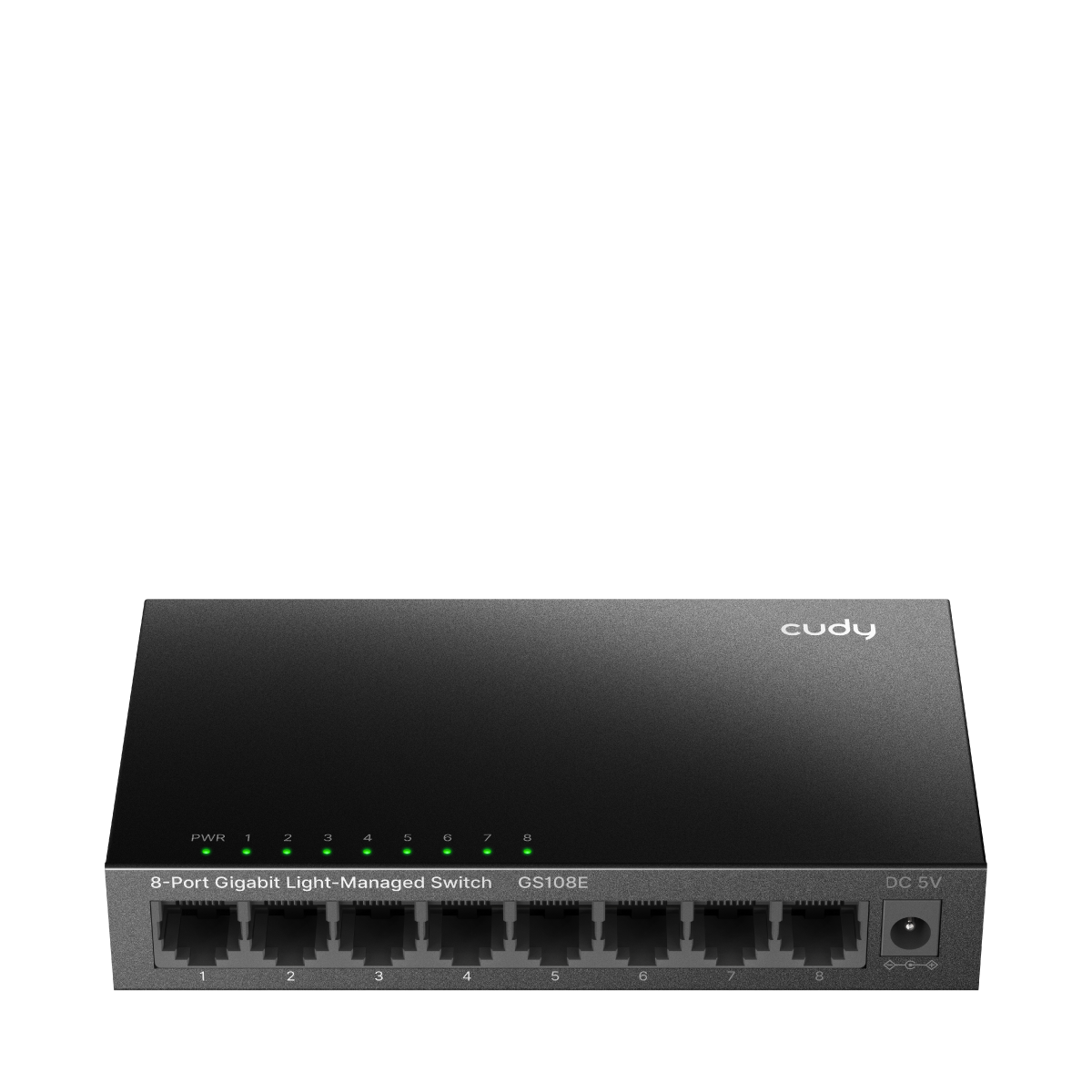

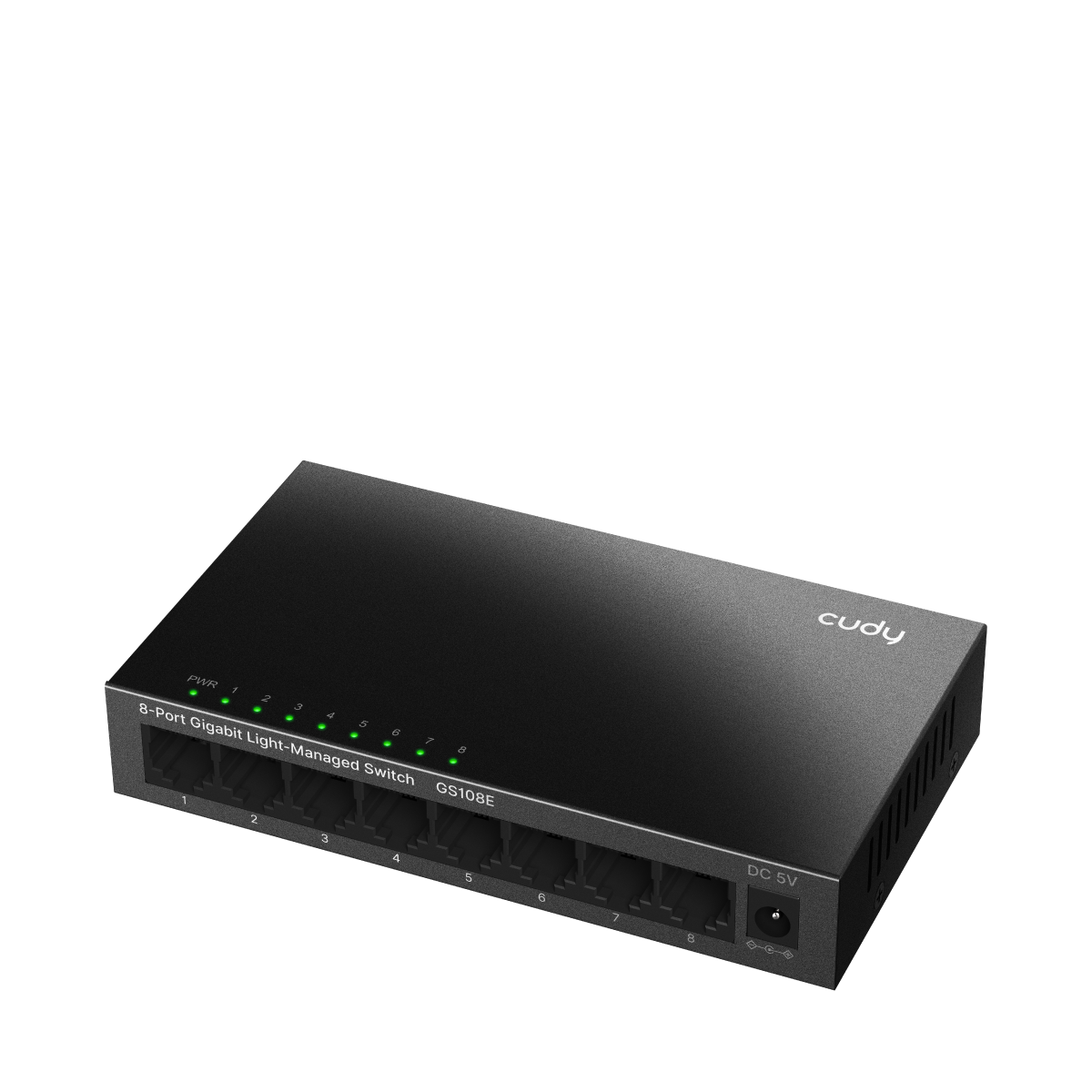

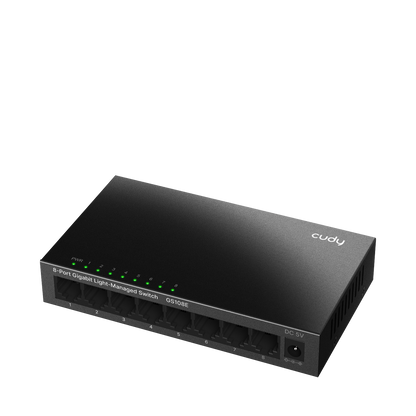

    8 prievadų šviesolaidinis valdomas Gigabitinis valdomas komutatorius, GS108E 2.0

    GS108E 2.0

    8-GbE jungiklis su valdymo funkcijomis.

    • 8× Gigabit Ethernet prievadai
    • Web valdymas, SNMP
    • VLAN (802.1Q/MTU/Voice/Port-Based)
    • QoS (802.1p/DSCP/Port-Based)
    • Port Mirror, Static Aggregation, etc
    • STP/RSTP ir kilpų prevencija
    • DHCP Snooping, IGMP Snooping
    • EEE (802.3az energijos taupymas)
    • Desktop, Wall-Mount
    • 138×78×25 mm (5,43×3,07×0,98")
    View full details

    A software features introduction to Cudy Light-Managed Switches. The actual port number varies.

    Saugus ir našus komutavimas

    802.1Q/MTU/Port-Based/Voice VLAN

    802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.

    DSCP/802.1p/Port-Based QoS

    DSCP/802.1p QoS identifikuoja DSCP paketus perdavime ir suteikia pirmenybę tiems duomenims, kurie jautrūs vėlavimui.

    Pagrindinės valdymo funkcijos

    Nuorodų agregavimas

    Leidžia sukurti kelias LAG grupes ir padidinti magistralės perdavimo greitį jūsų tinkluose.

    "DHCP Snooping

    Priskirti autorizuotą DHCP serverį, kad būtų išvengta prastovų, kai prie tinklo prisijungia kitas nesąžiningas DHCP serveris.

    IGMP Snooping

    Nustato prie komutatoriaus prijungtas daugiaadresinio transliavimo grupes ir siunčia duomenis į tikslius prievadus, užuot juos transliavęs.

    Kilpos prevencija

    Automatically detects network loops and blocks affected ports. Supports STP/RSTP to ensure stable performance in large redundant networks.

    Žiniatinklio konfigūracija ir SNMP V1/V2

    Lengvas valdymas

    Monitor port status, configure VLAN groups, LAG, DHCP, and more in the intuitive configuration page. The device also features SNMP to allow remote and centralized control.

    Žiniatinklio konfigūracija ir SNMP V1/V2

    Lengvas valdymas

    Monitor port status, configure VLAN groups, LAG, DHCP, and more in the intuitive configuration page. The device also features SNMP to allow remote and centralized control.

    Universalūs scenarijai

    Biuro tinklas

    Prekybos centro "Wi-Fi

    Stebėsena

    ISP FTTB

    Modelio versija
    Modelio versija GS108E 2.0
    Interfaces
    Interfaces Gigabit RJ45 Ports 8
    Extend Mode Ports Configurable
    VLAN Mode Ports Configurable
    LED
    • Power
    • Speed/Link/Act of Each Ethernet Port
    Power Interfaces DC Jack
    Physical Buttons Reset Button
    Performance
    Performance Copper Speed and Distance
    • Cat. 3 or higher cable: 100 meters at 10 Mbps
    • Cat. 5 or higher cable: 100 meters at 100 Mbps
    • Cat. 5e or higher cable: 100 meters at Gigabit
    • Cat. 5e or higher cable: 250 meters at 10 Mbps
    • Cat. 6 or higher cable: 150 meters at Gigabit
    Copper Speed and Distance Note 250-meter transmission is available when the port speed is set at 10 Mbps in the software.
    MAC Address Table 4096
    Max Switching Capacity 16 Gbps
    Max Forwarding Rate 11.904 Mpps
    Jumbo Frame 15 KB
    Packet Buffer 1.5 Mbit
    Power
    Power Basic Power Saving True
    Power Methods DC
    Power Input 5V⎓0.55A
    Power Adapter in the Box Input: 100-240V~, 50/60Hz
    Output: 5V⎓0.55A
    Max Power Consumption TBD
    Idle Power Consumption TBD
    Switching
    Switching 802.3 Protocols
    • 802.3x Flow Control
    • 802.3i 10BASE-T
    • 802.3u 100BASE-TX
    • 802.3ab 1000BASE-T
    • 802.3az Power Saving
    802.1 Protocols
    • 802.1d: STP
    • 802.1w: RSTP
    • 802.1p: LAN Layer 2 QoS/CoS
    • 802.1q: VLAN Bridge Operation
    • 802.1ab: LLDP/LLDP-MED
    Port Management
    • Port On/Off
    • Port Negotiation Speed
    • Port Trunk (Static Aggregation)
    • Port Mirror
    • Data Rate Limit
    • Jumbo Frame Settings
    • Storm Control
    • Traffic Monitor
    • MAC Address Management
    • EEE (802.3az)
    Port Mirror Sessions 4
    Port Trunk Groups 4
    Max Port Num per Port Trunk Group 7
    L2 Features
    • IGMP Snooping
    • Loop Prevention
    • DHCP Snooping
    • STP/RSTP
    • LLDP Config and Neighbors
    • MTU VLAN
    • Port-Based VLAN
    • 802.1Q VLAN
    • Voice VLAN
    • DSCP QoS
    • 802.1p QoS
    • Port-Based QoS
    Reliability
    Reliability EMS IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
    IEC/EN 61000-4-5, Level 3 Surge: 2kV
    Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
    Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    Operating Humidity: 10% ~ 90% non-condensing
    Storage Humidity: 5% ~ 90% non-condensing
    System
    System Control Methods
    • Config Web Page
    • SNMP V1/V2
    Firmware Upgrade Local Upgrade
    Reliability Backup and Restore
    Diagnostic Tools
    • Cable Status/Length Diagnosis
    • Ping
    Languages
    • English
    • Bengali
    • German
    • Spanish
    • French
    • Portuguese
    • Russian
    • Arabic
    • Indonesian
    • Hindi
    • Urdu
    • Traditional Chinese
    • Simplified Chinese
    Mechanical
    Mechanical Dimension 138×78×25 mm
    5.43×3.07×0.98 inches
    Casing Material Metal
    Installation
    • Desktop
    • Wall-mount
    Package Content
    Package Content
    • GS108E
    • Power Adapter
    • Installation Guide
    Ordering Information
    Ordering Information Retail Package Dimension EU/US:
    151×90.5×63 mm
    5.94×3.56×2.48 inches
    Units per Carton EU/US: 40
    Carton Dimension EU/US: 48.5×32.5×27.8 cm
    19.09×12.8×10.94 inches
