PoE komutatoriai
FS106P

Reliable PoE for 24/7 Consistent Operation

IEEE 802.3at/af. Up to 30W Per Port.

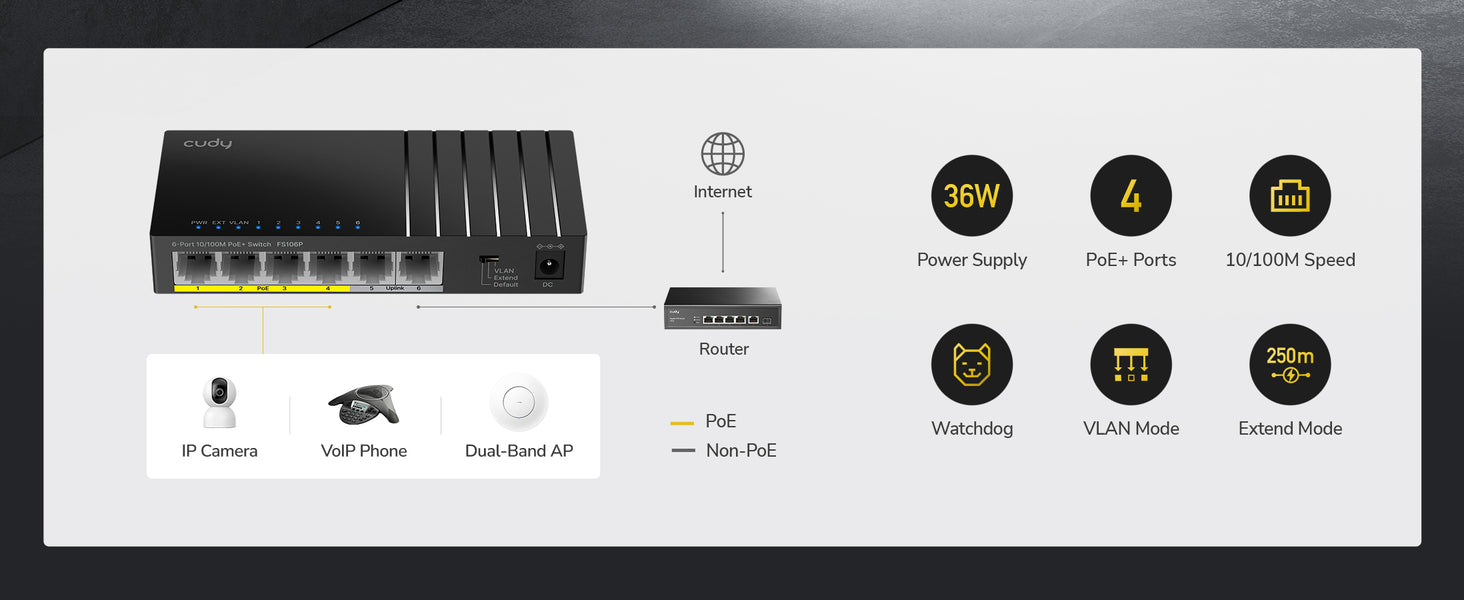

Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.

PoE Auto Recovery

Watchdog will be enabled under VLAN and Extend modes, and if a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.

Išplėskite PoE pasiekiamumą. Padidinkite klientų saugumą.

Išplėsti iki 250 m Perdavimas

For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.

VLAN izoliuoja žemyninės linijos prievadus, kad būtų užtikrintas didesnis saugumas

Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.

Universalūs scenarijai

Stebėsena

Biuro tinklų kūrimas

Studentų miesteliai "Wi-Fi

Prieigos ir ženklai

Compact Size. Modern Design.

Compact enough to fit in most network distribution boxes. The wave line and gray ports cast a modern aesthetic.

Compact Size. Modern Design.

Compact enough to fit in most network distribution boxes. The wave line and gray ports cast a modern aesthetic.

1 2

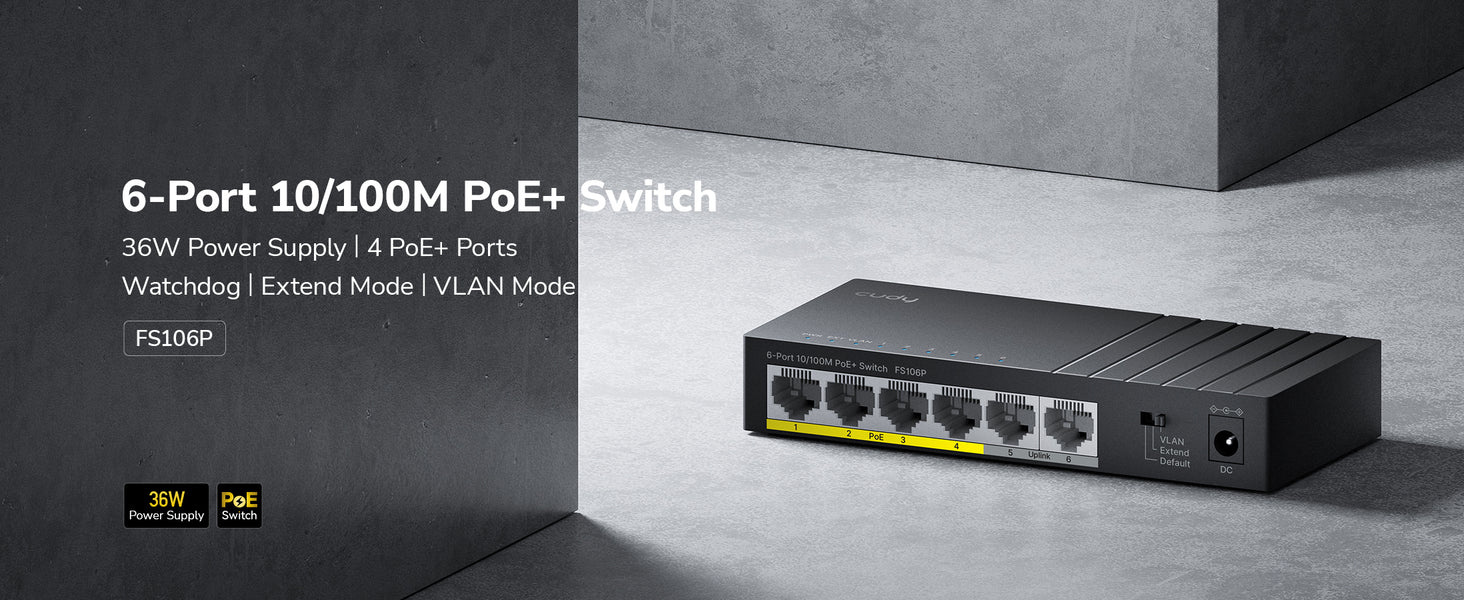

6 prievadų 10/100M PoE+ jungiklis

6 prievadų 10/100M PoE+ jungiklis, FS106P 1.0

FS106P 1.0

Šešių prievadų PoE komutatoriai su 36 W galia puikiai tinka stebėjimo ir išmaniųjų pastatų projektams. Funkcijos: tylus veikimas, 250 m išplėstinio nuotolio režimas, VLAN palaikymas ir automatinio atsistatymo funkcija "Watchdog".

  • 4× FE su 802.3at/af A režimo PoE
  • 2× Uplink FE
  • 36 W maitinimo šaltinis
  • Numatytasis/VLAN/išplėstinis režimas
  • Watchdog under VLAN or Extend Modes
  • Desktop, Wall-Mount
  • 138×61,5×24 mm (5,43×2,42×0,94")
View full details
Modelio versija
Modelio versija FS106P 1.0
Interfaces
Interfaces 10/100 Mbps RJ45 Ports 6
10/100 Mbps RJ45 PoE Ports #1~#4
Max Power on a Single PoE Port 30W
PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.
PoE Priority Intelligent Power Management:
Automatically disconnect the lastly powered device when power exceeds budget.
Extend Mode Ports #1~#4
VLAN Mode Ports #1~#4
LED
  • Power
  • Link/ACT of Each Ethernet Port
  • Extend Status
  • VLAN Status
Power Input DC Jack
Physical Buttons VLAN/Default/Extend DIP Switch
Physical Buttons Note The PoE Watchdog is on under the VLAN/Extend modes and will attempt to reboot the plugged-in but inactive client.
Performance
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
MAC Address Table 2048
Max Switching Capacity 1.2 Gbps
Max Forwarding Rate 0.8928 Mpps
Jumbo Frame 2 KB
Packet Buffer 570 Kbit
Power
Power Power Methods DC
DC 54V⎓0.66A
Power Adapter Input: 100-240V~, 50/60Hz
Output: 54V⎓0.93A
Power Supply 36W
Max Power Excluding PoE 2W
Switching
Switching 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3x Flow Control
  • 802.3af PoE
  • 802.3at PoE
Reliability
Reliability EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
Mechanical

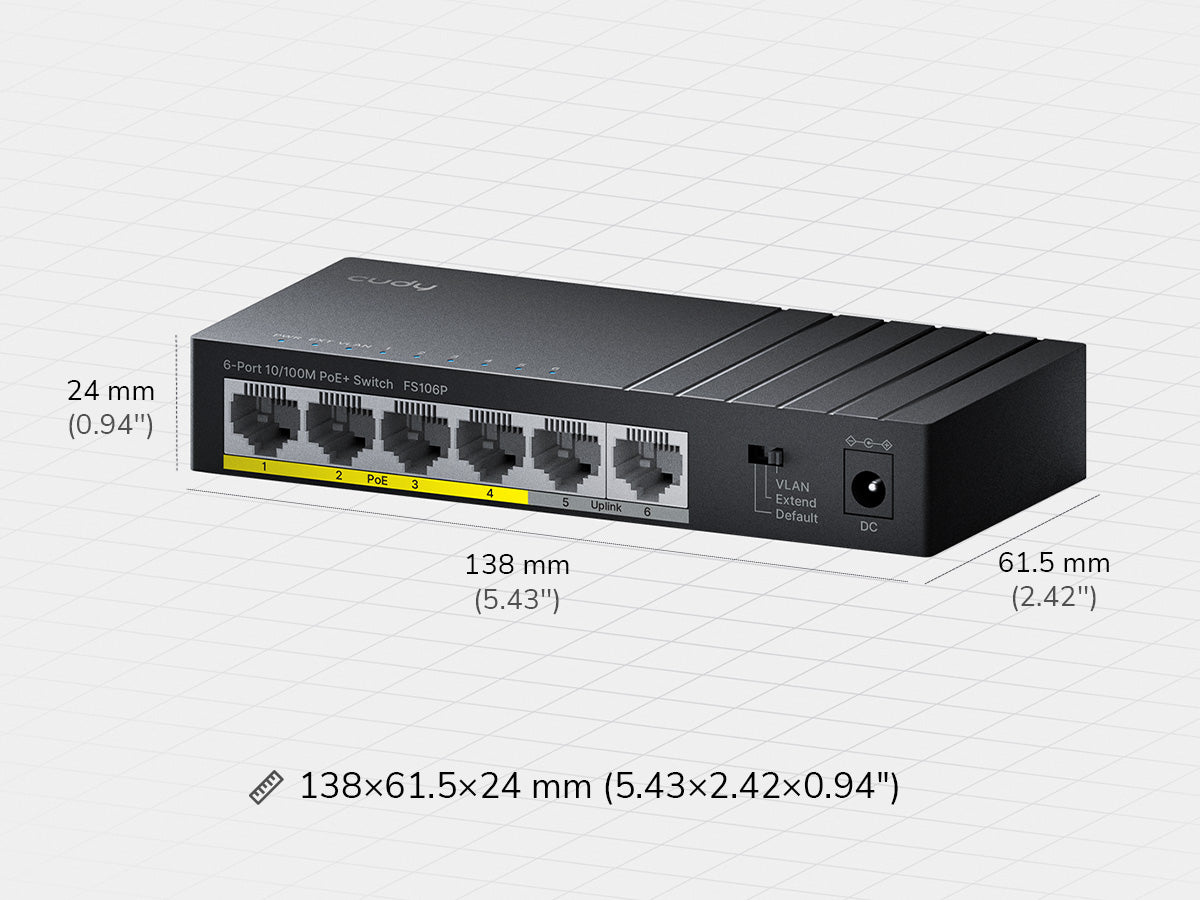

Mechanical Dimension 138×61.5×24 mm
5.43×2.42×0.94 inches
Product Weight 88.0 g (3.1 oz.)
Casing Material Plastic
Installation
  • Desktop
  • Wall-mount
Package Content
Package Content
  • FS106P
  • Power Adapter
  • Power Cord
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 151×95×72 mm
5.94×3.74×2.83 inches
Retail Package Weight EU: 367.7 g (12.97 oz.)
Units per Carton 30
Carton Net Weight EU: 11.0 kg (24.25 lbs)
Carton Gross Weight EU: 11.8 kg (26.01 lbs)
Carton Dimension 48×38×21.2 cm
18.9×14.96×8.35 inches
