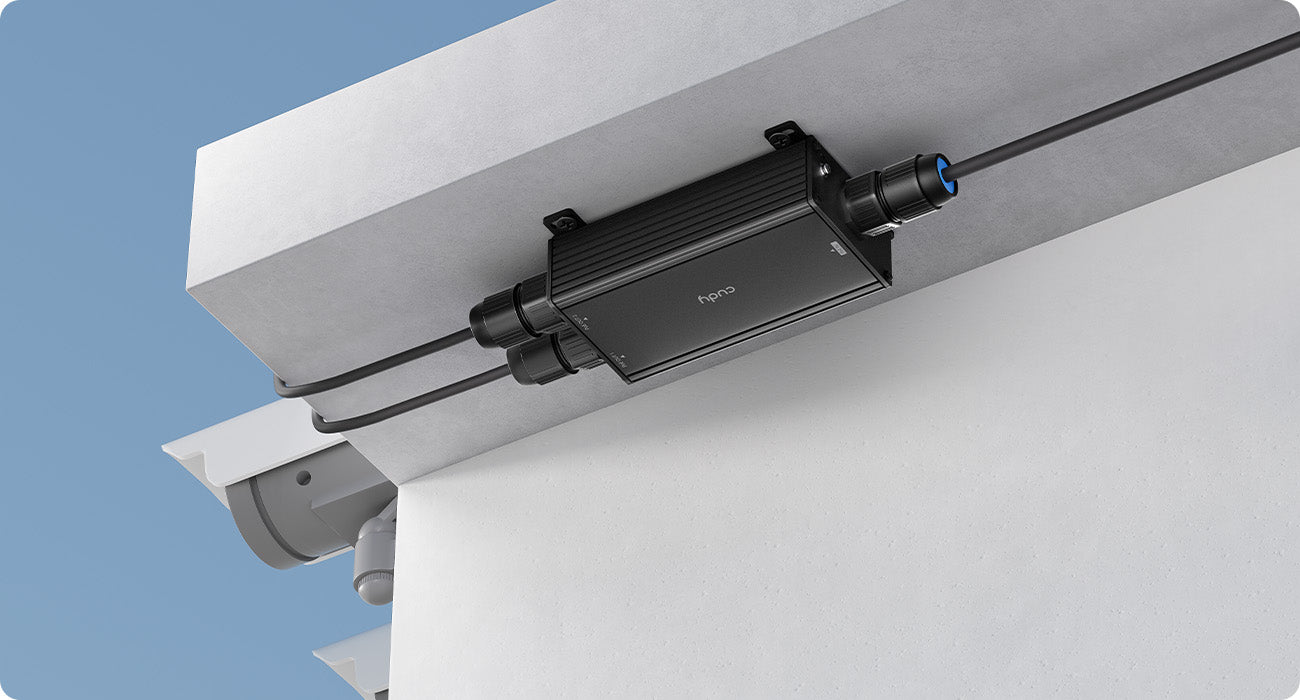

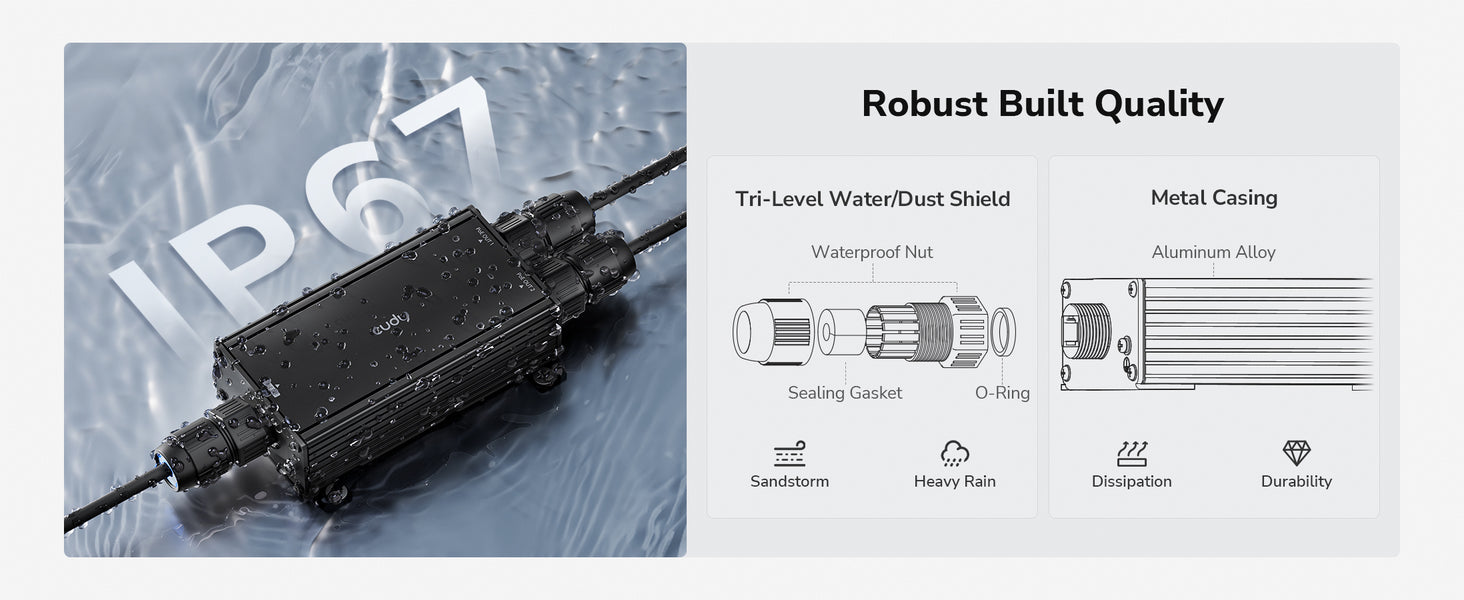

Designed for Harsh Outdoor Environment

Level 3+ EMC Protection

Keep your connection online with robust protection. Additionally featuring Polarity / Overvoltage / Short-Circuit / Automatic Voltage Regulation protection.

Works in Extreme Temperatures

Works in 70 °C (158° F) and cold (-20°C / -4° F), making it suitable for outdoor installations such as parking lots, cruise decks, national parks, and more.

High-Speed. Plug and Play.

Gigabit Speed

Provides super-fast bandwidth suitable for connecting multiple cameras, high-speed access points, speakers down the line.

Wall-Mount Ready

Installation is straightforward with no configuration required. Mounting screws are included in the box.

NaN -Infinity

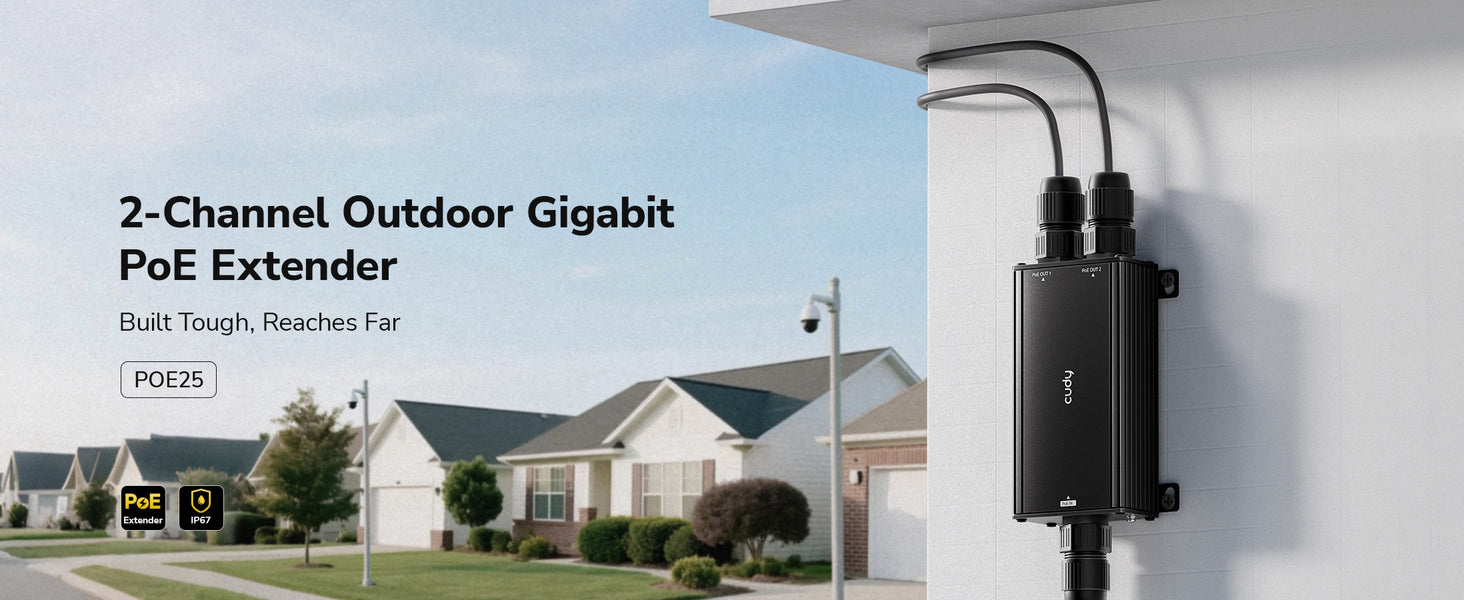

2-kanaliline välitingimustes kasutatav Gigabit PoE praplėtėjas

2-kanaliline välitingimustes kasutatav Gigabit PoE praplėtėjas, POE25 2.0

POE25 2.0

Product variants

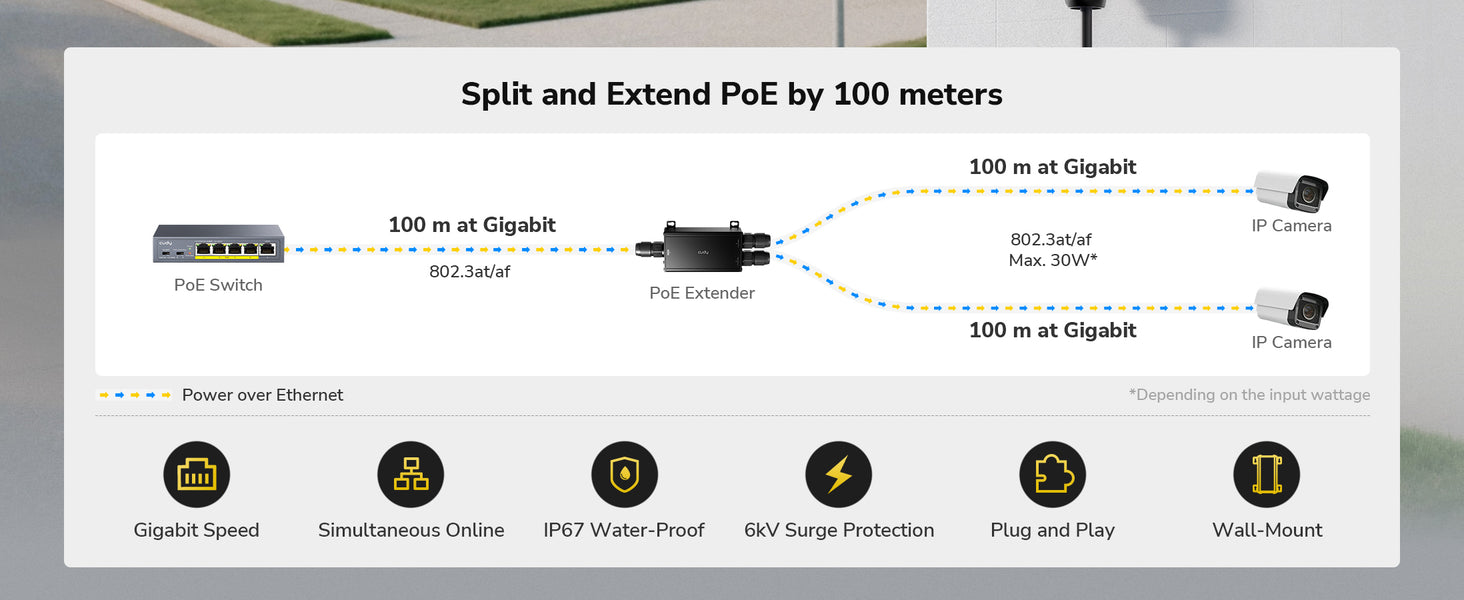

Kindla ilmastikukindlusega 2-kanaliline PoE laiendaja, mis pikendab PoE-kaugust 100m võrra.

IP67, -20 kuni 70 °C (-4 kuni 158 °F)
GbE sisend, 2× GbE väljund
802.3bt/at/af Sisend
2× 802.3at/af Max 30W väljundvõimsus
Seinale paigaldatav

View full details

Mudeli versioon
Mudeli versioon	POE25 2.0
Protocols
Protocols	802.3 Protocols	802.3i 10 Mbps over Twisted Pair 802.3u 100 Mbps over Twisted Pair 802.3ab 1 Gbps over Twisted Pair 802.3x Flow Control 802.3af PoE 802.3at PoE 802.3bt PoE
PoE
PoE	Uplink Stream	1× GbE, 802.3bt/at/af
	Uplink PIN Assignment	Mode A / Mode B / Four-Pair
	Downlink Stream	2× GbE, 802.3at/af
	Downlink Pin Assignment	Mode A
	Transimission Distance	Cat. 5e or higher cable: 100 meters at Gigabit Note: Distance from extender to switch depends on switch capability. Distance from extender to device follows extender rating
Power
Power	Power Input	≥60W is recommended
	Max Power Output	2× 30W
	Max Power Output Note	The actual power output depends on input
	Max Power Consumption (W)	2W
Reliability
Reliability	Power Protection	Polarity Protection Overvoltage Protection Short-Circuit Protection Automatic Voltage Regulation
	EMC	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level X Surge: RJ45: CM 6kV
	Grounding Methods	Grounding Point
	Environment	Ambient Operating Temperature: -20~70 ℃ (-4~158 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~100% non-condensing Storage Humidity: 5%~95% non-condensing
	Ingress Protection Rating	IP67
Certifications
Certifications	FCC, CE
Mechanical

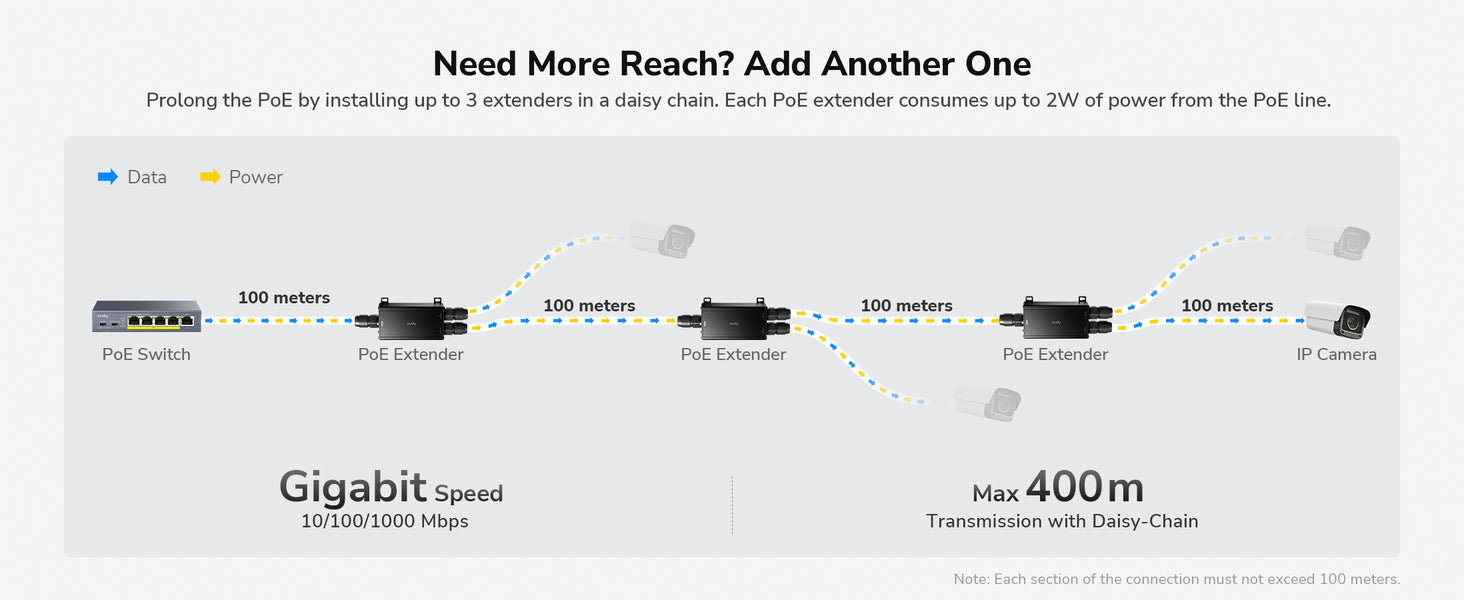

Mechanical	Install in a Daisy Chain	Up to 3 extenders in a chain
	Installation	Desktop Wall-mount
	Dimension	241×95×41.3 mm 9.49×3.74×1.63 inches
	Casing Material	Metal
	Product Weight	324.0 g (11.43 oz.)
Package Content
Package Content	POE25 Mounting Kit Installation Guide
Ordering Information
Ordering Information	Retail Package Dimension	210×127×52 mm 8.27×5×2.05 inches
	Retail Package Weight	521.5 g (18.4 oz.)
	Units per Carton	20
	Carton Net Weight	10.4 kg (22.93 lbs)
	Carton Gross Weight	11.0 kg (24.25 lbs)
	Carton Dimension	44.3×28.4×27.9 cm 17.44×11.18×10.98 inches
