5G AX3000 Industrial Wi-Fi Router

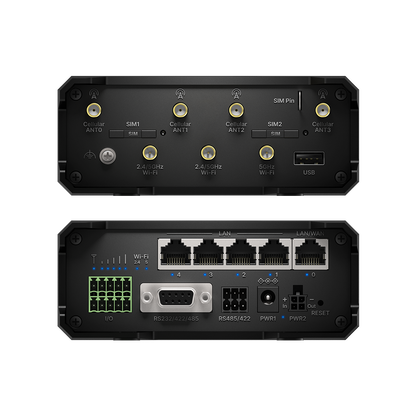

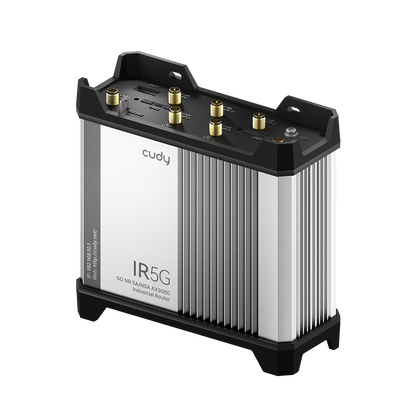

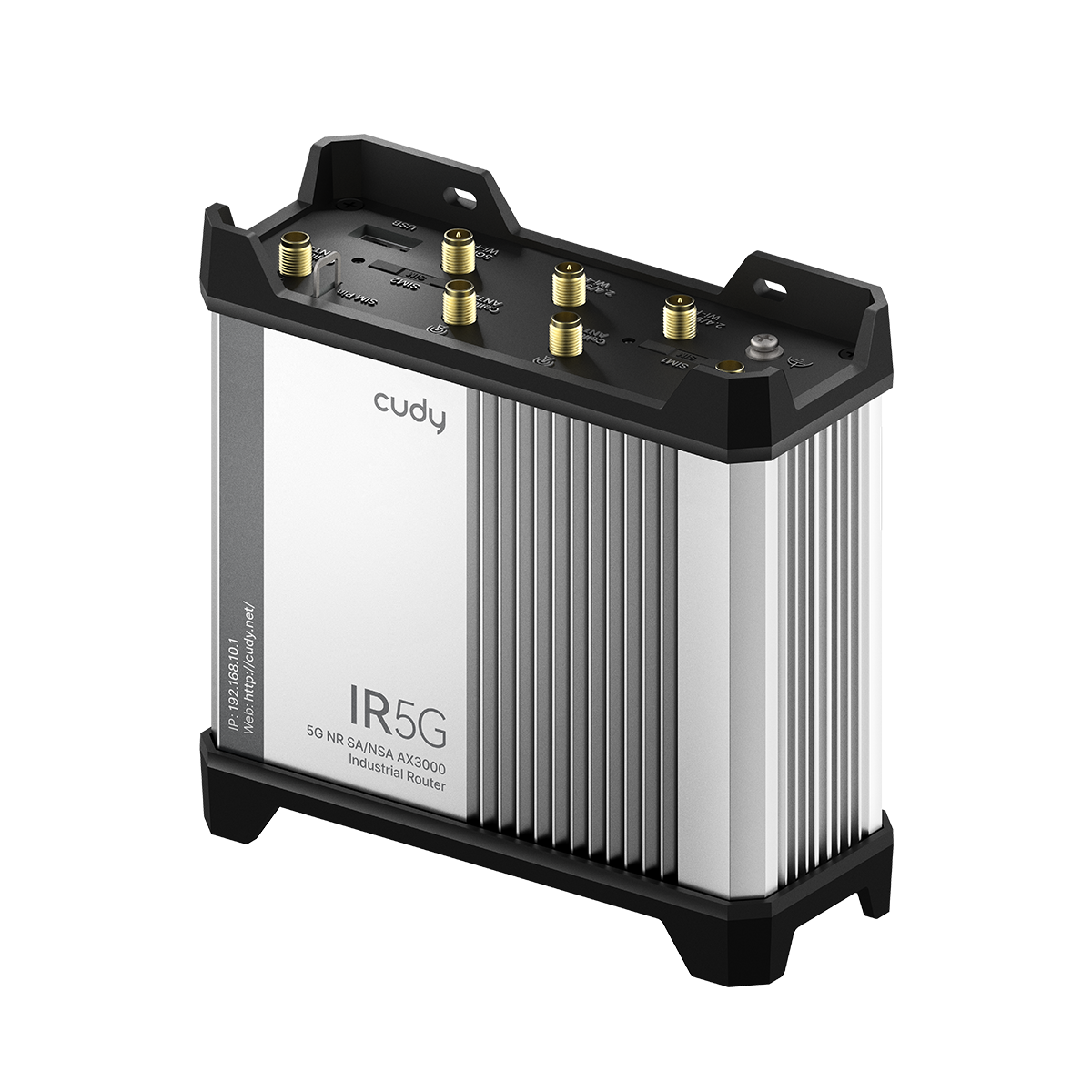

5G AX3000 Industrial Wi-Fi Router, IR5G 1.0

IR5G 1.0

A cellular Wi-Fi router with mobile connectivity for networking in harsh conditions such as moving vehicles, manufacturing, maritime, oil & gas, and mining.

  • 2 emplacements SIM
  • Wi-Fi 2402 Mbps + 574 Mbps 1
  • Série (RS232/422/485), E/S
  • CC 4 broches avec détection d'allumage
  • IP30, -40~75°C (-40~167°F), EN61373
  • Protection CEM de niveau 4
  • Rail DIN, montage mural
Afficher tous les détails
Version du modèle
Version du modèle IR5G 1.0
CPU
CPU CPU Details 1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Storage
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 256 MB (2 Gbit) DDR3
Cellular
Cellular Cellular Standards
  • 5G Rel. 15
  • DL 4G Cat. 12/ UL 4G Cat. 13
Cellular Antennas 4× Detachable (1.5 m cable length, customizable length for bulk orders)
Detachable Cellular Antennas Connector SMA Female
SIM Options 2× Mini SIM Slots (2FF)
Available Versions EU, US
EU Version Cellular
EU Version Cellular Suitable Region Europe, Middle East, Africa, Asia-Pacific, Latin America
Max DL Speed 3.4 Gbps (NSA), 2.4 Gbps (SA)
Max UL Speed 550 Mbps (NSA), 900 Mbps (SA)
Advanced DL/UL 4CA, DL 4×4, UL 2×2 MIMO
Cellular Bands 5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/71/77/78/79
LTE-FDD: B1/3/5/7/8/18/19/20/28/32
LTE-TDD: B34/38/39/40/41/42
WCDMA: B1/5/8
US Version Cellular
US Version Cellular Suitable Region United States, Canada
Max DL Speed 3.4 Gbps (NSA), 2.4 Gbps (SA)
Max UL Speed 550 Mbps (NSA), 900 Mbps (SA)
Advanced DL/UL 4CA, DL 4×4, UL 2×2 MIMO
Cellular Bands 5G Sub 6 GHz: n2/5/7/12/13/14/25/38/41/48/66/71/77/78
LTE-FDD: B2/4/5/7/12/13/14/17/25/26/66/71
LTE-TDD: B38/41/42/43/48
WCDMA: B2/4/5
Location Tracking
Location Tracking GNSS GPS, GLONASS, BeiDou, Galileo, and QZSS
Antennas 1× Detachable (1.5 m cable length, customizable length for bulk orders)
Detachable GNSS Antennas Connector SMA
Wireless
Wireless 5 GHz Wi-Fi Speed 2402 Mbps
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 3 Spatial Streams
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 3× Detachable (1.5 m cable length, customizable length for bulk orders)
Detachable Wi-Fi Antennas Connector RP-SMA Female
Beamforming
FEM or PA/LNA
  • 5 GHz: 3× Internal
  • 2.4 GHz: 2× Internal
Range Performance Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

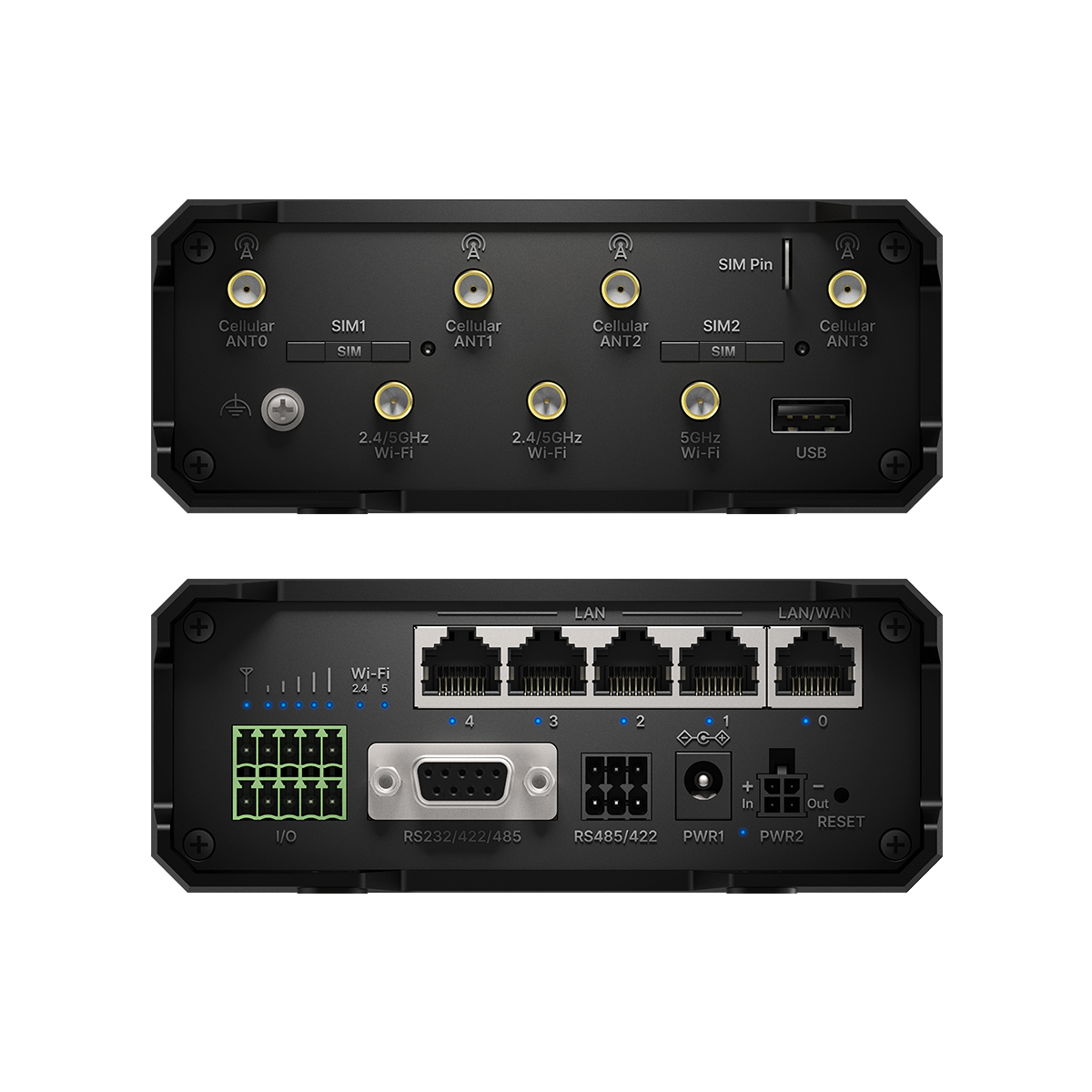

Interfaces
Interfaces Physical Buttons Reset Button
Gigabit RJ45 Ports 5
Ethernet Notes Port 1 is WAN/LAN configurable, and the rest are LAN ports
USB Ports 1× USB 2.0
Industrial Sockets
  • 1× DB9
  • 1× 6-PIN
  • 1× 10-PIN
DB9 Protocols
  • RS232
  • RS422
  • RS485
6-PIN Industrial Socket Protocols
  • RS485
  • RS422
IO
  • 1× Digital Dry Input (0-1.2V for state 1 | 1.8-3V for state 0) and GND1
  • 1× Digital Galvanically Isolated Input (0-4V for state 0 | 9-30V for state 1) and GND2
  • 1× Digital Open Collector Output (30V⎓250mA) and 1× GND3
  • 1× +V (<30V) and GND 3 for External VCC for the Digital Output
  • 1× C & NO - Common and Normally Open contacts of the internal Non-Latching Relay respectively (Max. 24V⎓4A or 40V~4A)
  • 1× A and GND1 - ADC input. Analog voltage range: 0-24V. The input can be configured for 4-20 mA sensor protocol as current measurement (AcL)
Other IO 1× Ignition Sensing and GND on the 4-PIN Power Connector
LED
  • Power
  • Cellular
  • Cellular Signal Strength
  • Link/ACT of Each Ethernet Port
Power Interfaces
  • DC Jack
  • PoE via Ethernet Port
  • 4-PIN DC
Power Input Note Only two Pins in the 4-Pin power terminal are used for powering. The other two are used for ignition sensing.
Power
Power Power Methods
  • DC
  • Passive PoE
Power Methods Note The LAN0 port accepts Passive PoE.
Power Input
  • DC: 9-57V⎓
  • 4-Pin DC: 9-57V⎓
  • Passive PoE: 9-57V⎓
Power Adapter In the Box Input: 100-240V~, 50/60Hz
Output: 12V⎓2A
Max Power Consumption (W) 13W
Idle Power Consumption (W) TBD
Reliability
Reliability Grounding Methods Grounding Point
EMC IEC/EN 61000-4-2, Level 4 ESD: Contact: 8kV; Air: 15kV
IEC/EN 61000-4-3, Level 4 RS: 80 MHz to 1 GHz: 30 V/m
IEC/EN 61000-4-4, Level 4 EFT: Power: 2kV; RJ45: 4kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
IEC/EN 61000-4-6, Level 3 CS: 10V
IEC/EN 61000-4-8, Level 5 PFMF
IEC/EN 61000-4-9, Level 5
IEC/EN 61000-4-10, Level 5
Power Protection
  • Polarity Protection
  • Overvoltage Protection
  • Surge Protection
Shock IEC/EN 60068-2-27
Vibration IEC/EN 60068-2-6
Free Fall IEC/EN 60068-2-32
Ingress Protection Rating IP30
Environment Operating Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉)
Storage Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉)
Operating Humidity: 5% ~ 95% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Casing Material Aluminum Alloy
Dimension Device:
129.1×124×51.3 mm
5.08×4.88×2.02 inches
Mounting Space:

Installation
  • Wall-mount
  • DIN-Rail
Package Content
Package Content
  • IR5G
  • Power Adapter
  • Detachable Wi-Fi Antennas
  • Detachable Cellular Antennas
  • Detachable GNSS Antenna
  • 6-PIN Connector
  • 10-PIN Connector
  • 4-PIN Connector
  • Ethernet Cable
  • SIM Adapter KIT
  • Installation Guide
Compatibility
Compatibility Accesssories POE52-30W 1.0, POE48-18W 1.0
  1. Le débit réel des données sans fil varie en fonction des conditions du réseau, des limitations du client et des facteurs environnementaux, notamment la disposition du bâtiment, les obstacles et l'emplacement du client.
