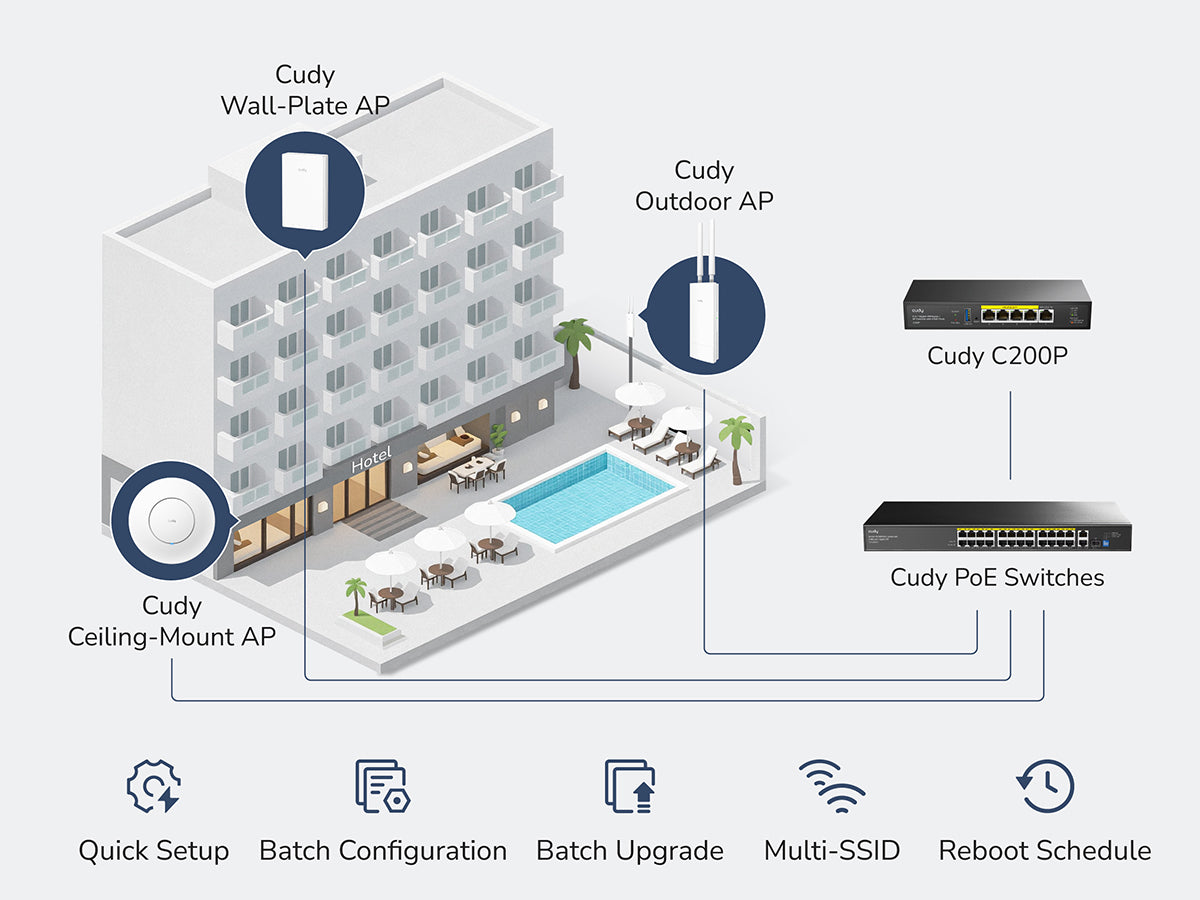

Centralized AP Management

Cudy C200P is compatible with Cudy Access Points and enables centralized management of up to 200 APs through a unified interface*, enabling efficient batch configuration and firmware updates.

Centralized AP Management

Cudy C200P is compatible with Cudy Access Points and enables centralized management of up to 200 APs through a unified interface*, enabling efficient batch configuration and firmware updates.

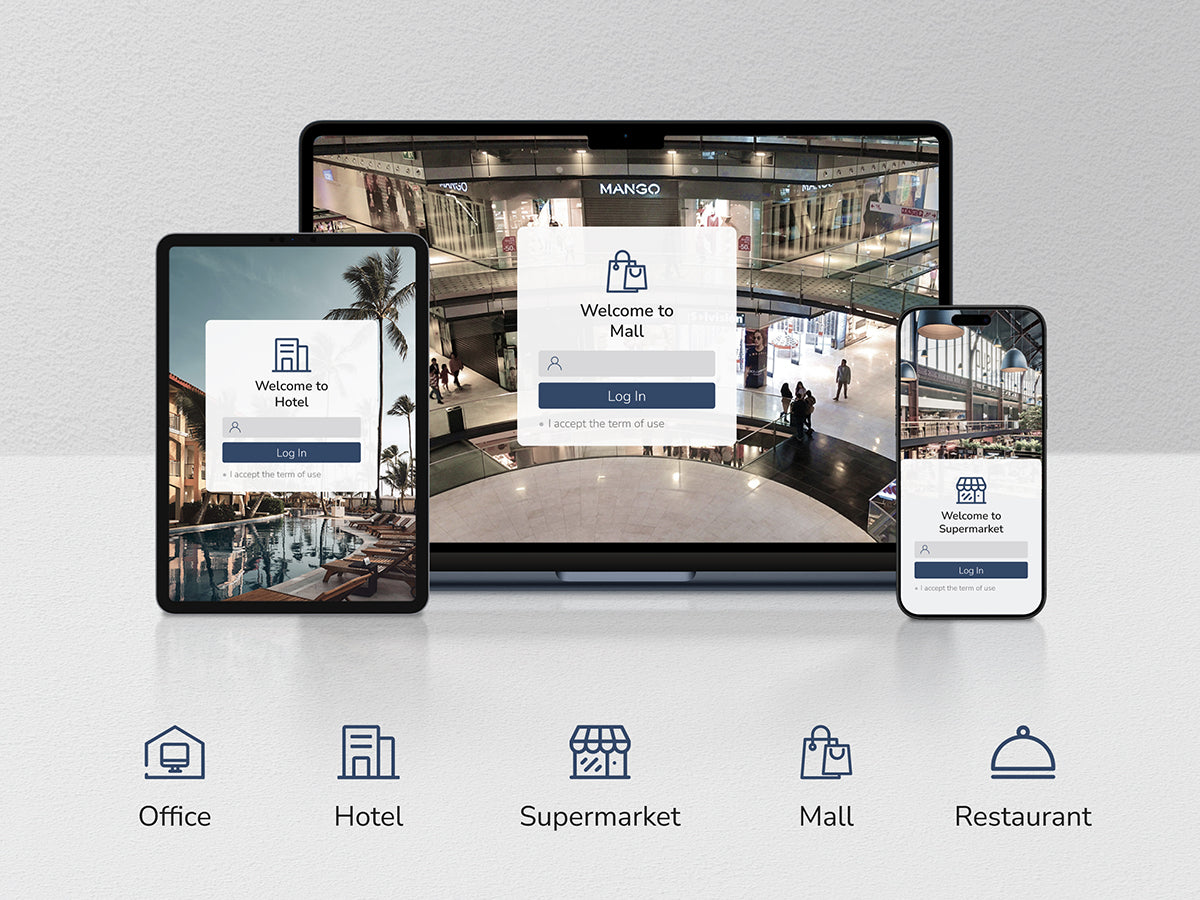

Customized Captive Portal for Guest Network

Enhance brand visibility with a customized login page. Captive portal lets you engage new users instantly and promote your brand as they connect to your network. Supports both no-authentication and local password portal types for flexible access control.

Customized Captive Portal for Guest Network

Enhance brand visibility with a customized login page. Captive portal lets you engage new users instantly and promote your brand as they connect to your network. Supports both no-authentication and local password portal types for flexible access control.

Easier Network Maintenance

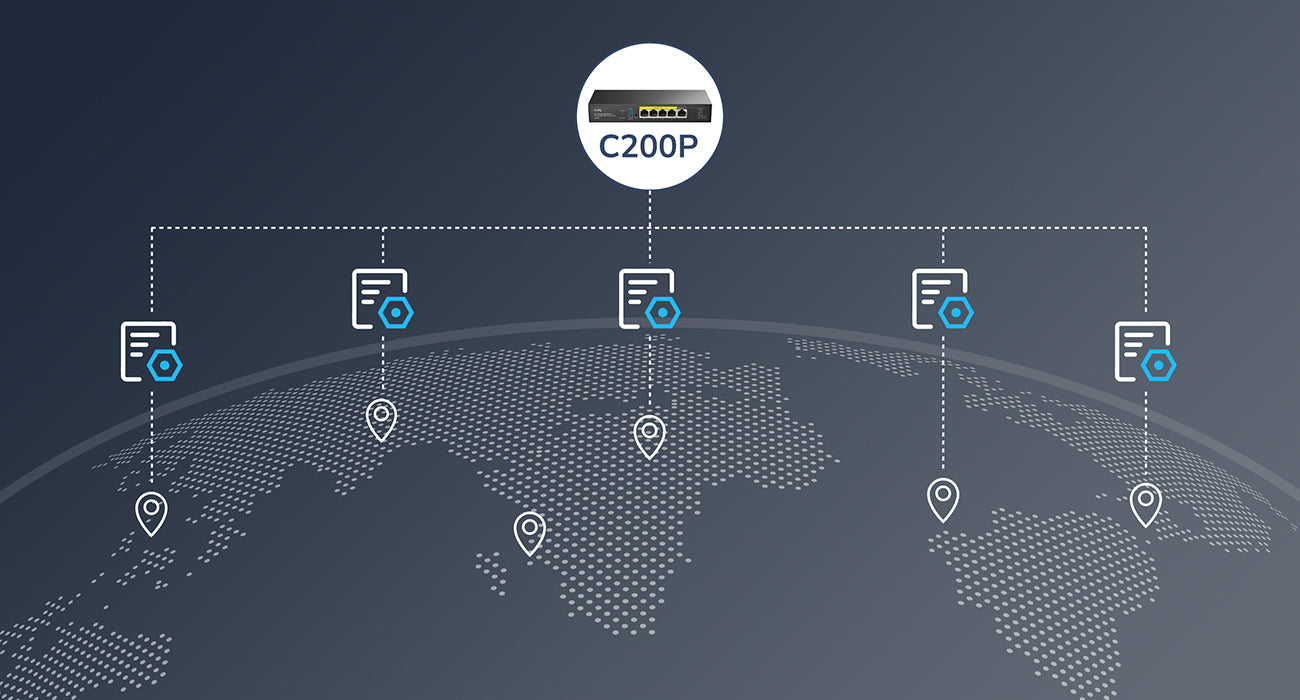

Multi-Device Network Maintenance

Simplify network maintenance with centralized control—manage multiple devices across sites and deploy firmware updates remotely, without on-site configuration or handling each device individually.(*Available via future firmware update.)

Smart Scheduling

Automate routine tasks for effortless network management. Includes Upgrade Scheduler for seamless firmware updates.

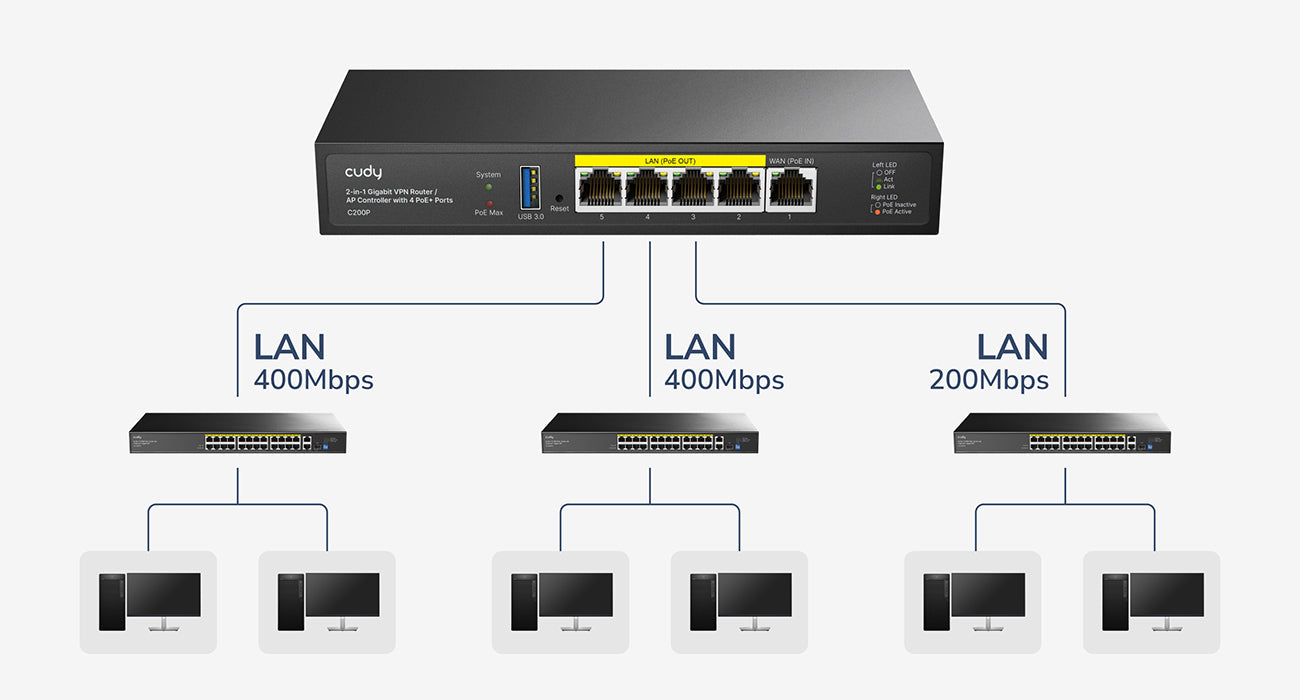

Flexible Traffic Control

Bandwidth Control and Session Limit enables the administrators to flexibly manage network bandwidth to optimize usage (*Available via future fireware update).

Compact Desktop Design

Durable metal casing and desktop/wall-mounting design suited for different environments.

NaN -Infinity

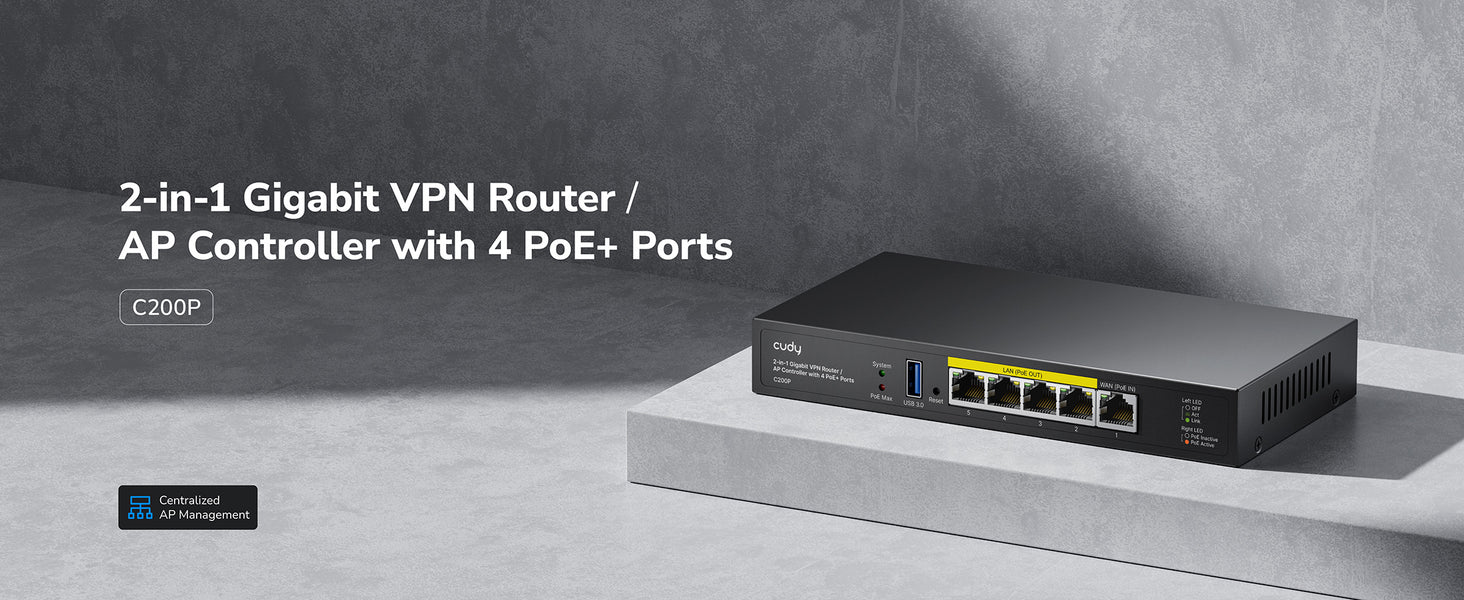

Routeur SMB/contrôleur AP 2-EN-1 avec 4 ports PoE+

Routeur SMB/contrôleur AP 2-EN-1 avec 4 ports PoE+, C200P 1.0

C200P 1.0

Variantes de produits

Un routeur Gigabit fonctionnant comme contrôleur des points d'accès Cudy pour les demandes Wi-Fi dans toute la maison, doté de quatre sorties PoE et de fonctionnalités Cudy Mesh.

4 × GbE avec PoE 802.3at/af mode A
1 × port Ethernet Gigabit
1 × port USB 3.0
60W Power Supply
Manage 200 APs ¹
Portail captif, serveur Radius
Cudy Mesh, serveur et client VPN

Afficher tous les détails

Spécifications matérielles

Spécifications du logiciel

Version du modèle
Version du modèle	C200P 1.0
CPU
CPU	CPU Details	880 MHz Dual-Core
Memory/Storage
Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
	DDR/RAM	256 MB (2 Gbit) DDR3
Interfaces

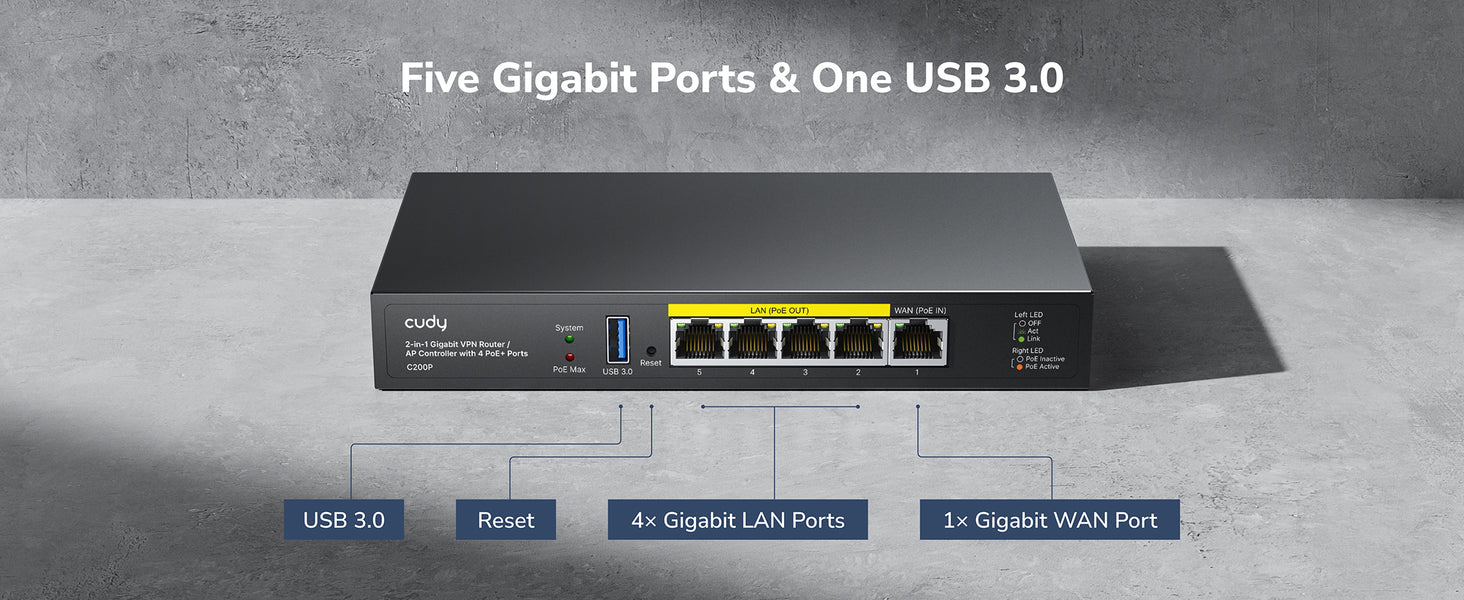

Interfaces	Gigabit RJ45 Ports	5
	Gigabit RJ45 PoE Ports	#2~#5
	Max Power on a Single PoE Ports	30W
	PoE Ports Notes	The PoE ports comply with IEEE 802.3at/af standards.
	Ethernet Notes	1× WAN Port, 4× LAN Ports
	USB-A 3.0 Ports	1
	LED	System PoE Max Status Link/ACT/PoE Status of Each PoE Port
	Physical Buttons	Reset Button
	Power Input	DC Jack
Power
Power	Power Methods	DC 802.3at/af PoE Passive PoE
	DC	54V 1.11A
	Passive PoE	24/48V
	Power Adapter	Input: 100 ~ 240 V, 50 Hz AC Output: 54V 1.11A DC
	Max Power Consumption (W)	Total: 60W PoE: 55W PoE (when USB Device is plugged in): 50W No PoE: 5W
	Idle Power Consumption (W)	2W
Reliability
Reliability	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 5% ~ 95% non-condensing Storage Humidity: 0% ~ 100% non-condensing
	Grounding Methods	Grounding Point
Certifications
Certifications	FCC, CE
Mechanical
Mechanical	Installation	Desktop Wall-mount
	Casing Material	Metal

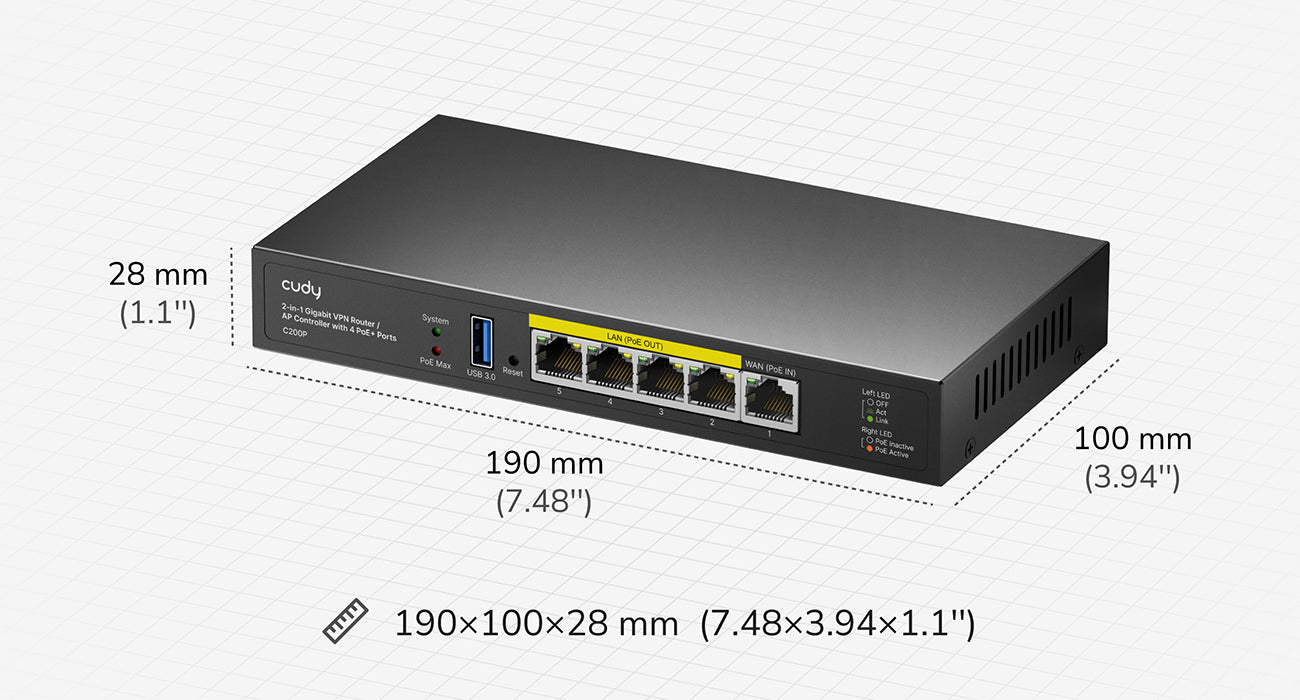

	Dimension	190×100×28 mm 7.48×3.94×1.1 inches
Package Content
Package Content	C200P Power Adapter Ethernet Cable Installation Guide Mounting Kit
Ordering Information
Ordering Information	Retail Package Dimension	209×132×81.5 mm 8.23×5.2×3.21 inches
	Units per Carton	10
	Carton Dimension	43.8×42.8×15.1 cm 17.24×16.85×5.94 inches

Version du modèle
Version du modèle	C200P 1.0
General
General	WAN Mode	DHCP Static IP PPPOE

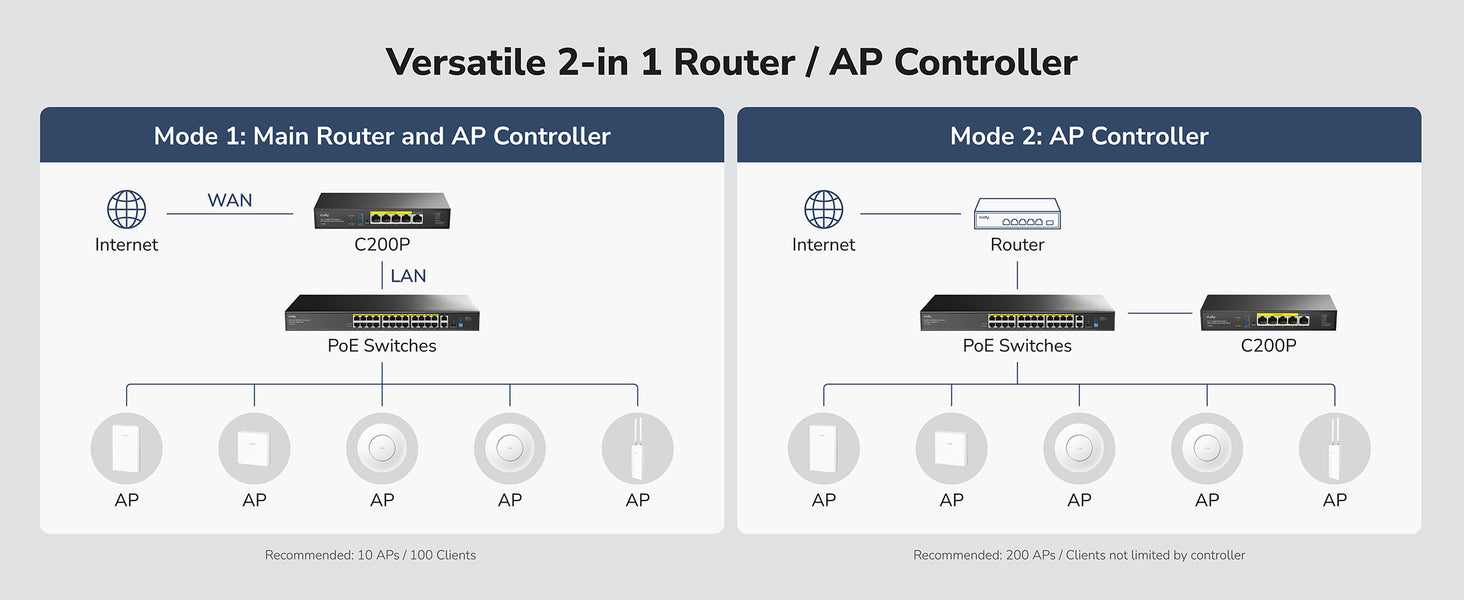

	Recommended Number of APs	1. Main Router and AP Controller Mode: 10 2. AP Controller Mode: 200* * If using the external portal server feature, it is recommended to manage fewer than 200 APs.
	Recommended Number of Clients	1. Main Router and AP Controller Mode: 100 2. AP Controller Mode: Not limited by controller
Network
Network	QoS	Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities

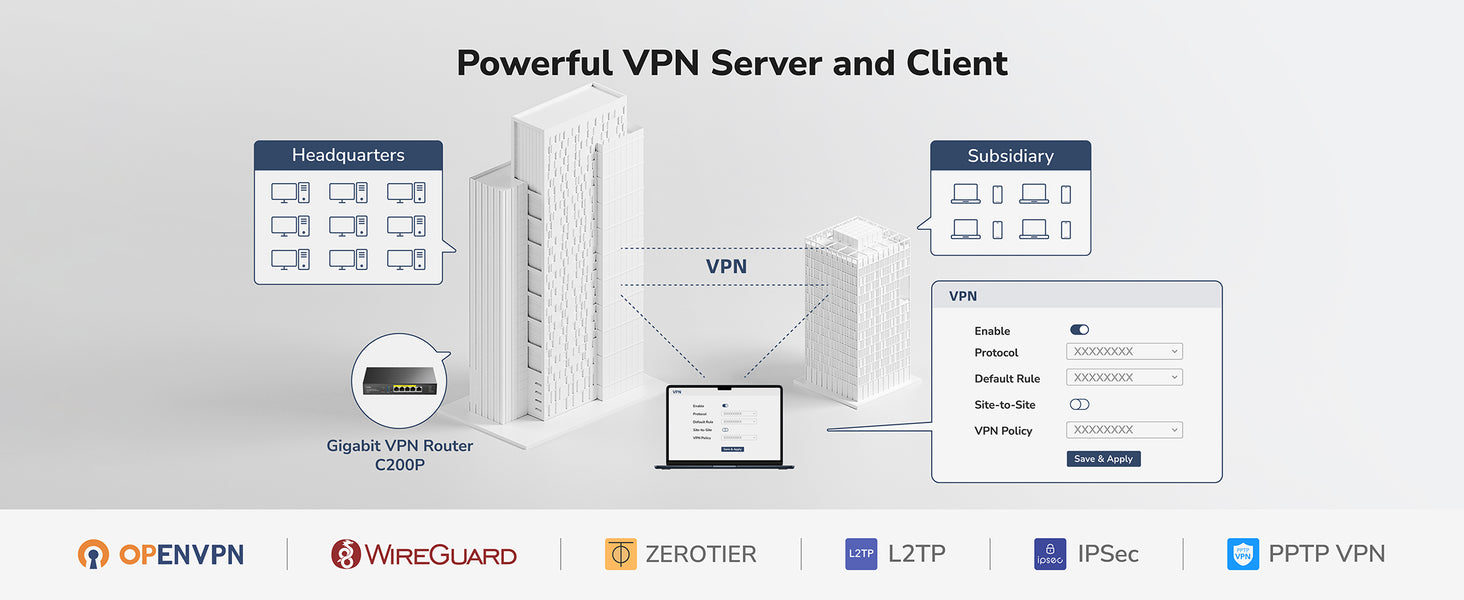

Utilities	VPN Server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Client	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Performance	OpenVPN Client (UL/DL): 22 / 24.7 Mbps OpenVPN Server (UL/DL): 22 / 20.9 Mbps WireGuard Client (UL/DL): 142 / 233.9 Mbps WireGuard Server (UL/DL): 213 / 152 Mbps
	Max Concurrent VPN Tunnels	IPSec: 20 PPTP/L2TP: 16 OpenVPN: 16
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	USB Functions	Samba Server
	Wake on LAN	True
	Online Detection	True
Management
Management	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
	AP Management	Captive Portal, Multi-SSID (Up to 4 SSIDs on each band)
System
System	Local Control Method	Config Web Page
	Remote Control Method	Config Page via HTTPS TR069/TR098/TR111/TR143/TR181
	Firmware Upgrade	Local Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
Dashboard
Dashboard	Panel	Internet Status WAN Status LAN Status VPN Status DHCP Server Status System Version AP Management
System
System	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese

In AP Controller Mode, the maximum number of manageable APs is 200. If using the external portal server feature, it is recommended to manage fewer than 200 APs.
