Reliable PoE+. Multi-Gig Speed.

IEEE 802.3at/af. Max 30W Output.

Provides up to 30W of power in standard 802.3at/af PoE protocol, suitable for powering access points, surveillance cameras, and other PoE clients.

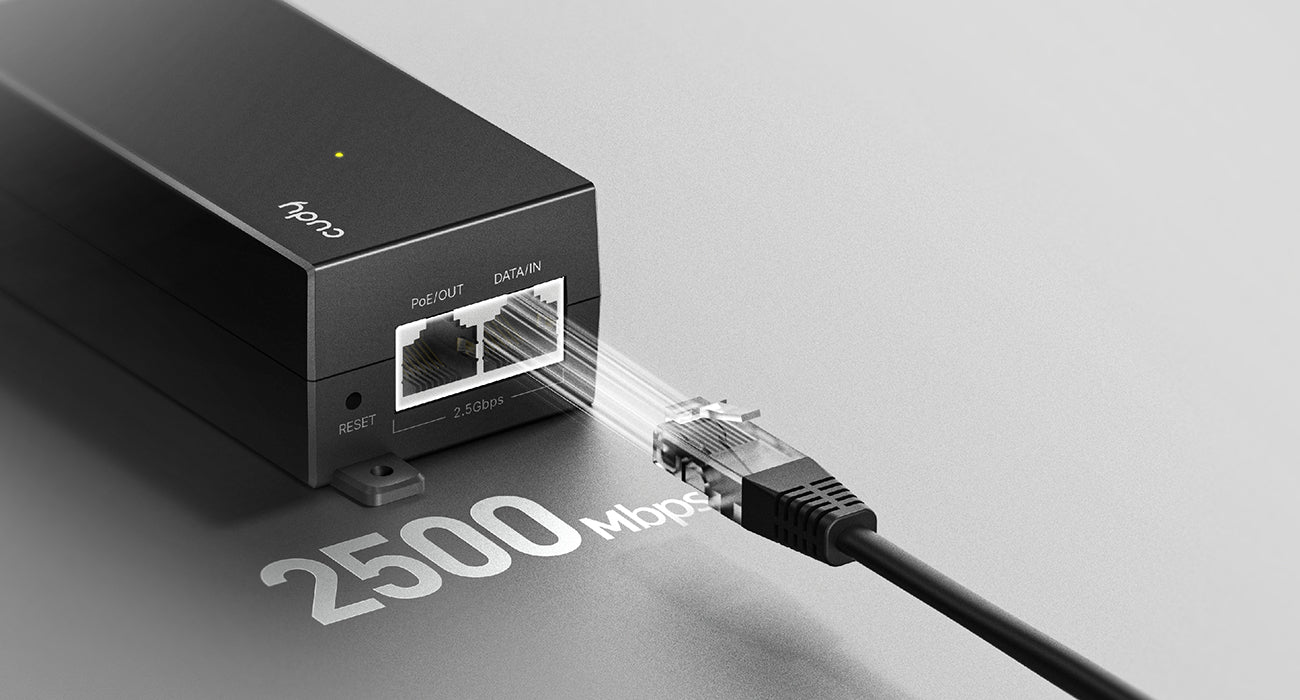

10/100/1000/2500 Mbps Speeds

Deliver ultra-fast 2.5G data rates to bandwidth-intensive devices like Wi-Fi 6/7 access points, ensuring smooth, high-throughput performance with zero bottlenecks.

Exceptional Built-Quality for Stable Operation

Protect Clients with Outstanding EMC

Robust EMC design protects itself and clients from power surges and ESD.

ESD: Contact 6kV; Air 8kV
Surge: Power DM 4kV, CM 4kV; RJ45 CM 4kV

Built to Last Longer with High-Quality Capacitors

Equipped with high-quality capacitors rated for 1.6× longer lifespan than the industry average, making the PoE adapter more resistant to aging and wear.

Easy to Use. Plug and Play.

Auto Negotiating the Power Needed

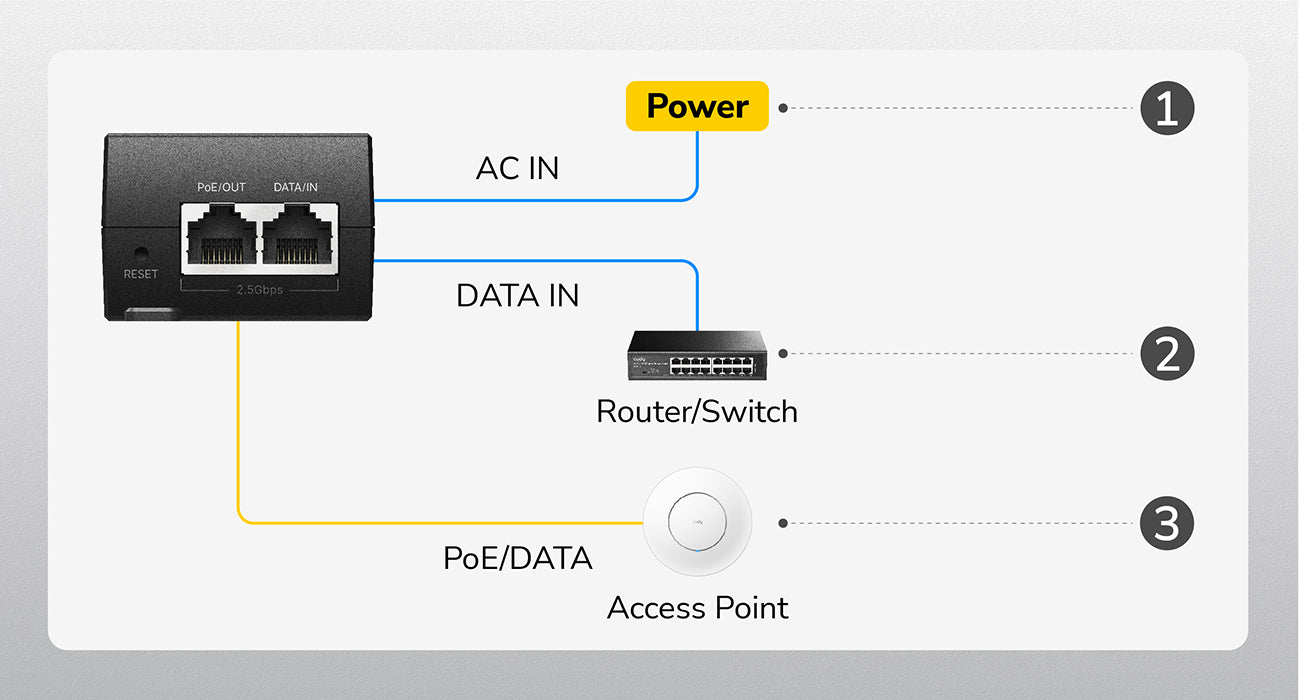

Connect the power, switches/routers, and clients—the adapter will automatically detect the required power wattage and deliver it accordingly.

Wallmount Ready

Features two mounting holders, allowing you to firmly mount it on the walls.

1 1

30W 2.5 Gbps PoE++ Injector

30W 2.5 Gbps PoE++ Injector, POE200H 1.0

POE200H 1.0

Product variants

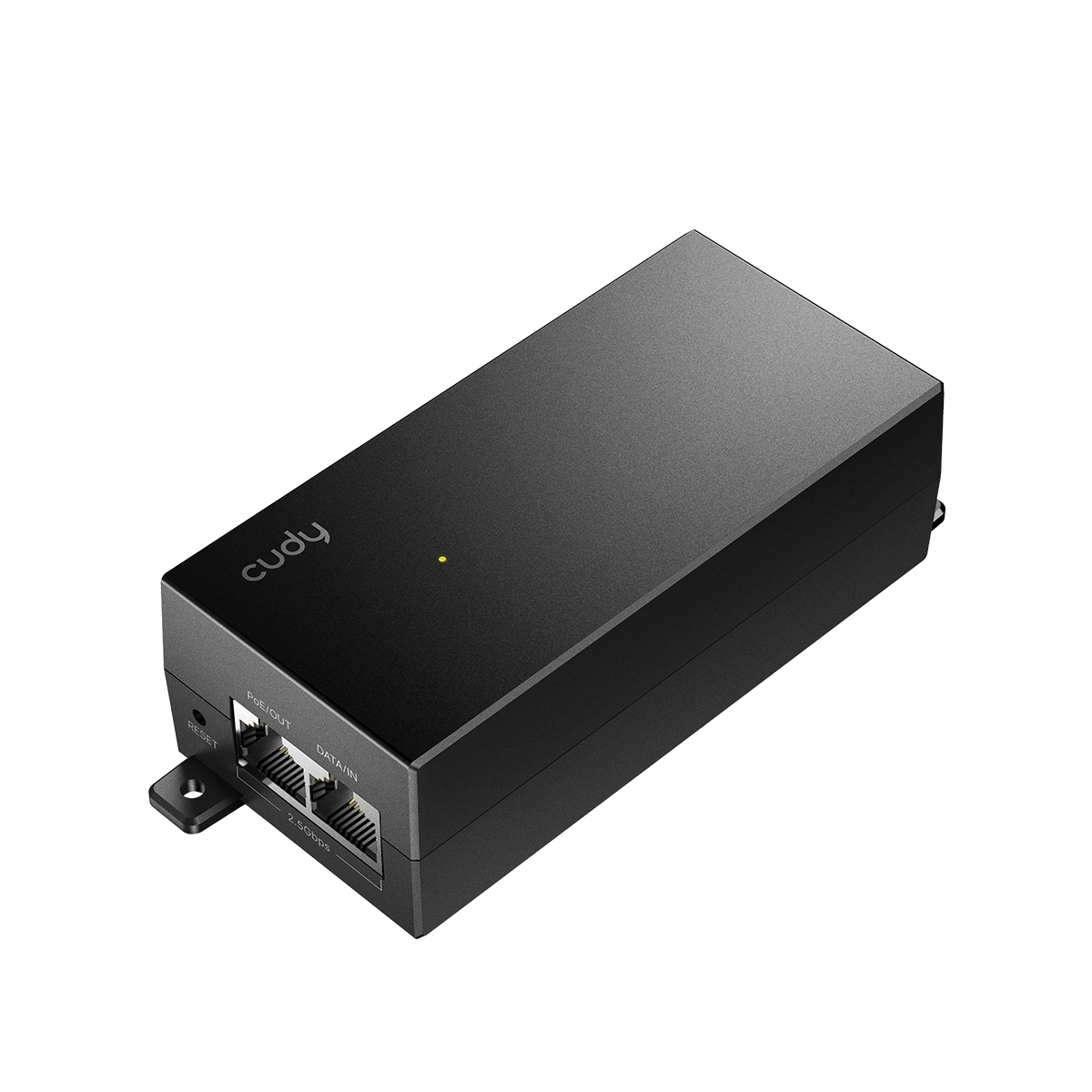

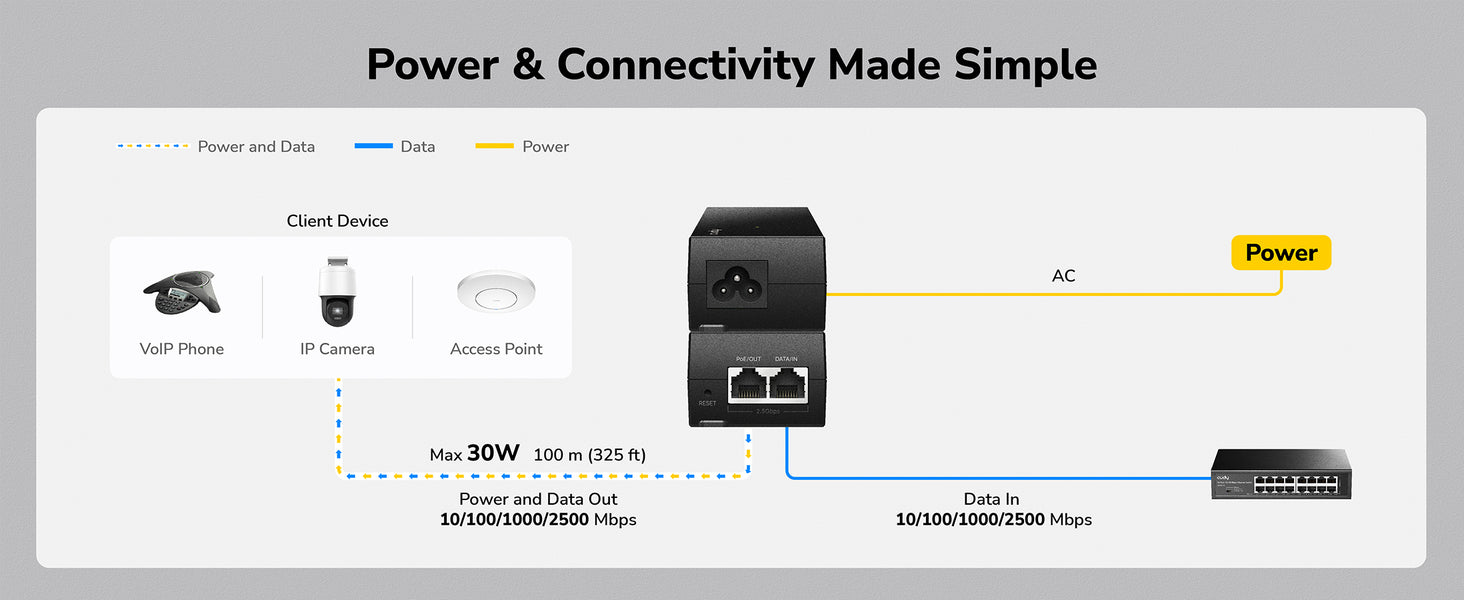

A wall-mounted 2.5G PoE adapter injecting up to 30W power to the Ethernet cable to power up the PoE device.

2.5GbE In, 2.5GbE Out
100m Transmission Distance
802.3at/af, Max 30W, Mode A
Surge/ESD Protection
Power LED, PoE Status LED

View full details

Model Version
Model Version	POE200H 1.0
Protocols
Protocols	802.3 Protocols	802.3i 10 Mbps over Twisted Pair 802.3u 100 Mbps over Twisted Pair 802.3ab 1 Gbps over Twisted Pair 802.3bz 2.5 Gbps over Twisted Pair 802.3af PoE 802.3at PoE
PoE
PoE	Uplink Stream	1× 2.5GbE
	Downlink Stream	1× 2.5GbE, 802.3at/af
	Downlink Pin Assignment	Mode A
	Transimission Distance	Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 100 meters at 2.5 Gbps Note: Total cable length from the uplink switch through the PoE adapter to the downlink device is measured as one segment
Interfaces
Interfaces	Physical Buttons	Reset Button
	LED	Power
	Power Input	AC Inlet
Power
Power	AC	100-240V, 50/60Hz, 0.8A
	Max Power Output	30W, 54V⎓0.56A
Reliability
Reliability	Power Protection	Surge Protection ESD Protection Overvoltage Protection Short-Circuit Protection
	EMC	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Above Level 4 Surge: Power: DM 4kV, CM 4kV; RJ45: CM 4kV
	Grounding Methods	Three-Prong Plug
	Environment	Ambient Operating Temperature: -10~40 ℃ (14~104 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 10%~95% non-condensing
Certifications
Certifications	FCC, CE
Mechanical
Mechanical	Installation	Desktop Wall-mount
	Dimension	123×51×35 mm 4.84×2.01×1.38 inches
	Casing Material	Plastic
Package Content
Package Content	POE200H Power Cord Mounting Kit Installation Guide
Ordering Information
Ordering Information	Retail Package Dimension	193×135×55 mm 7.6×5.31×2.17 inches
	Units per Carton	40
	Carton Dimension	35.2×33.1×32.6 cm 13.86×13.03×12.83 inches
