Turn Everywhere 4G into High-Speed Wi-Fi

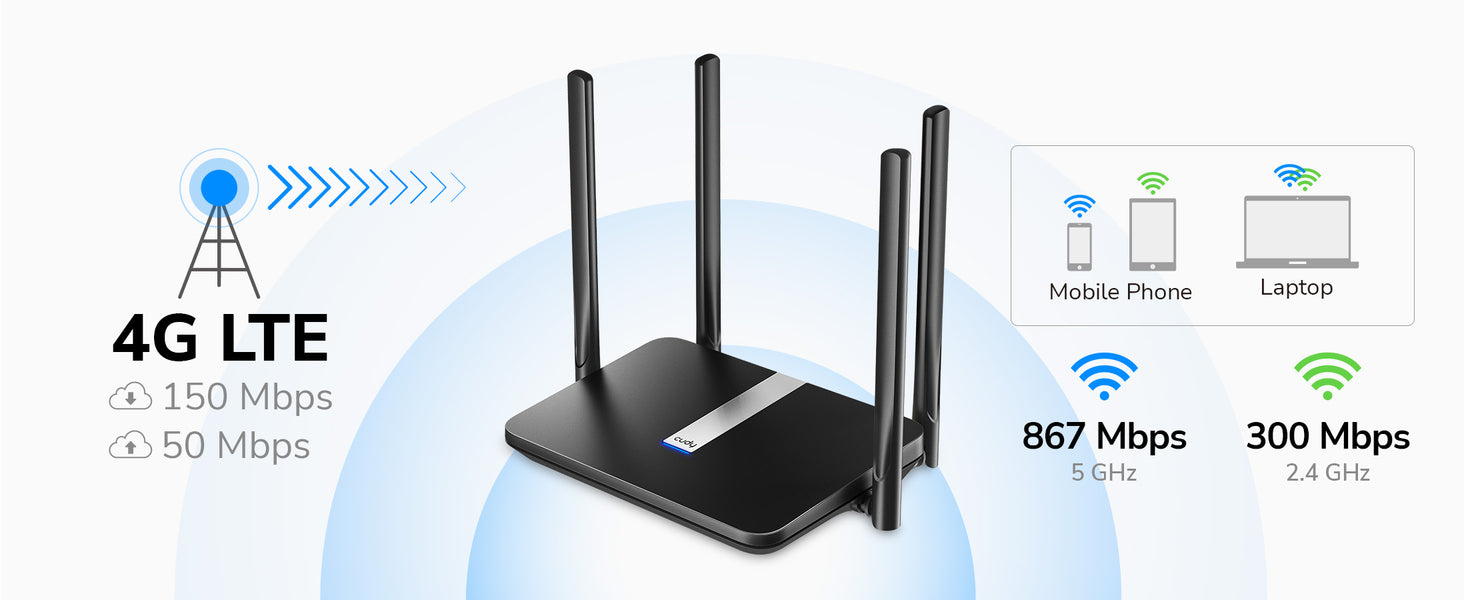

Plug in a nano SIM card and connect 4G with a DL speed of up to 150 Mbps. Share the connection via a high-speed dual-band AC1200 Wi-Fi for more than 40 devices.

Stable Internet. Online Guaranteed.

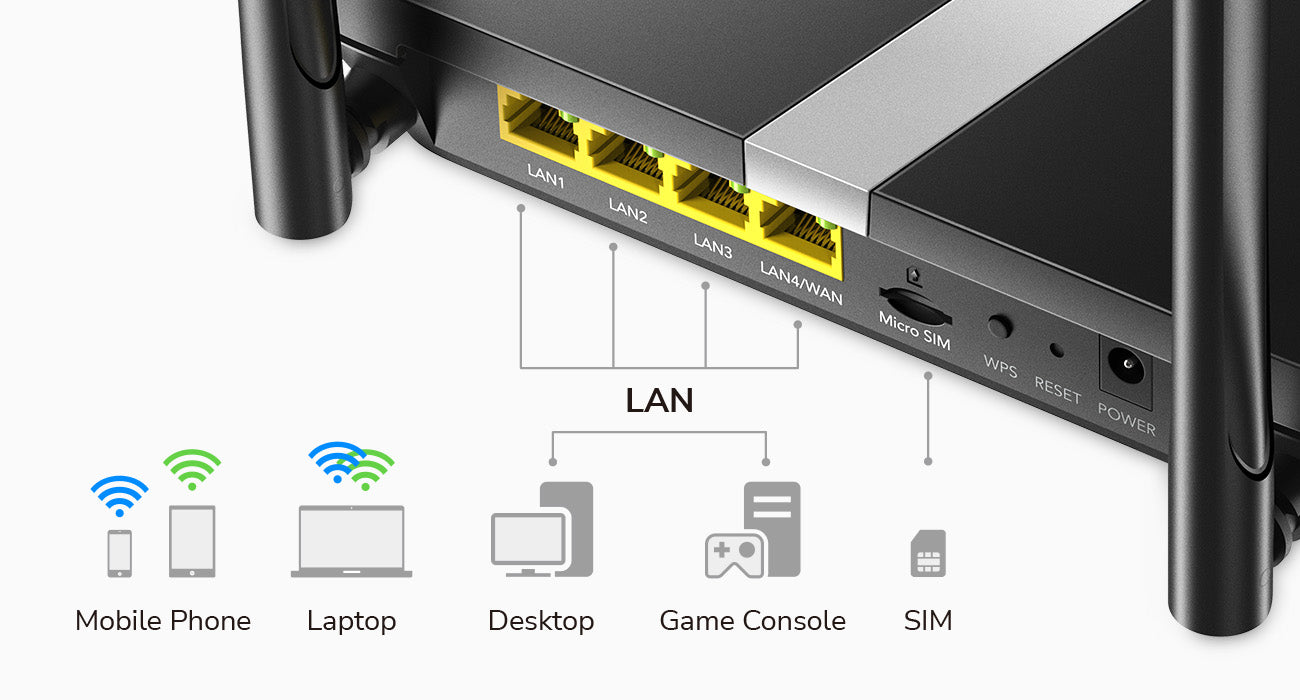

Reliable Wired Sharing over Four Ethernet Ports

Share network via four 10/100 Mbps Ethernet ports, providing stable connections to TV, PC, console, and printers.

Stay Connected

Add redundancy to your network with WAN/WISP/4G connection backup, ideal for surveillance and retail use to protect your business.

East Setup. Versatile Functions.

Online Management

Set a WiFi schedule and a blacklist of domains or IPs to prevent inappropriate content and protects your kids.

VPN

Grab your files conveniently from the remote network with ZeroTier/WireGuard/ OpenVPN/IPSec/L2TP/PPTP.

DDNS

DDNS binds a domain to your network so you can always access your network without a static IP address.

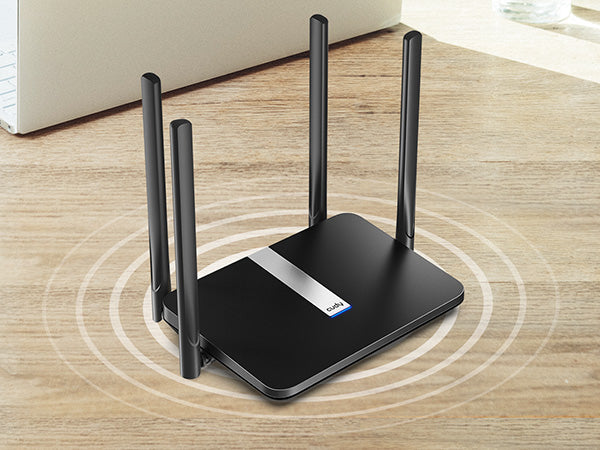

High-Gain Antennas

Delivers stable performance with high-gain antennas, for decent web browsing and video streaming.

Plug in a SIM Card to Enjoy the Network

Home

Plug and play easy-to-install WiFi for every home—no rigid broadband subscription is required.

Automobile

Provide decent networks for all devices on your road journey.

Surveillance

Make sure the network is always on with the WAN + WISP + 4G backup function.

Booth

Utilized the flexible pay-as-you-go plan to equip your temporary booth with a fast network. (SIM card is not included)

Guide for Verizon/T-Mobile/Visible Subscribers

Verizon & Visble:

Connect to your 4G/5G router via Wi-Fi / Ethernet cable
Log in your 4G/5G router in browser with url http://cudy.net or 192.168.10.1
Make sure your router has the latest firmware. (Go to the Advanced Settings > System > Firwmare to check. Go to download center or use Cudy app for upgrade)
Go to Advanced Settings > lPv6 to enable it
Go to Advanced Settings > TTL , set it as Custom, set TTL to 64 (Visible subscriber only: set HL to 65)
Go to General Settings > Cellular
Set APN profile as Manual and then set APN as wvzinternet (Verizon subscriber)/ VSBLINTERNET (Visible subscriber), and leave username and password as blank, and set Authentication as PAP+CHAP
Save all the settings and then check. Done!

T-Mobile & T-Mobile B2B Static IP:

Follow step 1-3 in Verizon & Visible section
Go to General Settings > Cellular
Set Network mode as 4G only
Set APN profile as Manual,
Set APNas fast.t-mobile.com (Note:for static IP plan, set APN as b2b.static), and leave username and password as blank,
Set Authentication as PAP+CHAP
Save all the settings and then check
Finished
If the internet still not work after all, then please wait 5 minutes and then go to Diagnostic Tools > System log to download the log and send it to cudy@support.com

NaN -Infinity

4G AC1200 Wi-Fi Router

Name: 4G AC1200 Wi-Fi Router, LT500 2.0
Brand: Cudy

4G AC1200 Wi-Fi Router, LT500 2.0

LT500 2.0

Product variants

A 4G WiFi router with one nano SIM slot and four Ethernet ports, providing easy-to-install flexible networks for home, office, surveillance, exhibitions, and RV scenarios.

4G Cat. 4 with Max 150 Mbps DL ¹
4-Stream Dual-Band Wi-Fi 5
867 Mbps + 300 Mbps Wi-Fi ²
4× Fast Ethernet Ports
1× Nano SIM Slot
Cudy Mesh, VPN Server and Client
Cudy App, Cloud Control

View full details

Hardware Specs

Software Specs

Model Version
Model Version	LT500 2.0
CPU
CPU	CPU Details	580 MHZ Single-Core, MIPS24KEC
Memory/Storage
Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
	DDR/RAM	128 MB (1 Gbit) DDR2
Cellular
Cellular	Cellular Standards	4G Cat. 4
	Cellular Antennas	2× Fixed
	SIM Options	1× Nano SIM Slot
	Available Versions	EU, US, AU
EU Version Cellular
EU Version Cellular	Suitable Region	Europe, Middle East, Africa
	Max DL Speed	150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
	Max UL Speed	50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
	Advanced	DL 2×2 MIMO
	Cellular Bands	LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 WCDMA: B1/5/8
US Version Cellular
US Version Cellular	Suitable Region	United States, Canada
	Max DL Speed	150 Mbps
	Max UL Speed	50 Mbps
	Advanced	DL 2×2 MIMO
	Cellular Bands	LTE-FDD: B2/4/5/12/13/14/66/71 WCDMA: B2/4/5
AU Version Cellular
AU Version Cellular	Suitable Region	Latin America, Australia, New Zealand
	Max DL Speed	150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
	Max UL Speed	50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
	Advanced	DL 2×2 MIMO
	Cellular Bands	LTE-FDD: B1/2/3/4/5/7/8/28/66 LTE-TDD: B40 WCDMA: B1/2/4/5/8 GSM: B2/3/5/8
Wireless
Wireless	5 GHz Wi-Fi Speed	867 Mbps
	2.4 GHz Wi-Fi Speed	300 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	2× Fixed
	Beamforming	True
	FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
	Range Performance	Max: 130 m (427 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	One wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 10 cm (4'')
Interfaces
Interfaces	Physical Buttons	WPS Button Reset Button
	10/100 Mbps RJ45 Ports	4
	Ethernet Notes	1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
	LED	System Speed/Link/ACT of Ethernet Port
	Power Input	DC Jack
Power
Power	Power Methods	DC
	DC Input	12V 1A
	Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
Reliability
Reliability	EMC	ESD: Contact: 4kV; Air: 8kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Certifications
Certifications	FCC, CE
Mechanical
Mechanical	Dimension	204.8×133.2×38.3 mm 8.06×5.24×1.51 inches
	Product Weight	308 g (10.86 oz.)
	Installation	Desktop Wall-mount
Package Content
Package Content	LT500 Power Adapter Ethernet Cable Installation Guide
Ordering Information
Ordering Information	Retail Package Weight	AU: 715 g (25.22 oz.) EU: 714 g (25.19 oz.) US: 740 g (26.1 oz.) UK: 721 g (25.43 oz.)
	Retail Package Dimension	340×275×60 mm 13.39×10.83×2.36 inches
	Carton Net Weight	AU: 7.1 kg (15.65 lbs) EU: 7.1 kg (15.65 lbs) US: 7.4 kg (16.31 lbs) UK: 7.2 kg (15.87 lbs)
	Carton Gross Weight	AU: 8.0 kg (17.64 lbs) EU: 8.7 kg (19.18 lbs) US: 8.2 kg (18.08 lbs) UK: 8.9 kg (19.62 lbs)
	Carton Dimension	57×32.5×35.8 cm 22.44×12.8×14.09 inches

Model Version
Model Version	LT500 2.0
Wireless
Wireless	Wi-Fi Standards	Wi-Fi 5
	Max Wi-Fi Modulation	256-QAM
	Wi-Fi Efficiency	MU-MIMO
	Wi-Fi Efficiency Note	MU-MIMO available on 5 GHz
	Max Capacity	128
	Recommended Client Upper Limit	40
	Max Wi-Fi Channel Width	80 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz, 5 GHz
	WPS	True
General
General	Operation Modes	Cellular Router Wi-Fi Router WISP
	Mesh	Cudy Mesh Main
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Cellular APN	Band Select (Band Lock) Cellular Mode Select Data Roaming APN Profile Manual APN Profile MBN MTU Value
	Cellular Mode	4G Only Auto
	WAN Mode	DHCP Static IP PPPOE
	Internet Failover Sequence	WAN WISP Cellular
Network
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	IPTV/VLAN	Bridge Tag VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities
Utilities	VPN Server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Client	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	Wake on LAN	True
	Online Detection	True
Management
Management	Parental Controls	Profiles Settings Offline Time Online Time Pause the Internet Web Filter
	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System
System	LED Control	True
	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
	Reliability	Timed Reboot Backup and Restore
Dashboard
Dashboard	Panel	Internet Status Mesh Status Devices Management Cellular Status SMS Send and Receive WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Mesh Topology Cellular Speed Internet Speed WISP Speed Wi-Fi Speed

Actual cellular speeds will vary depending on carrier conditions and environmental factors such as cellular base station location/distance, nearby clients density, building layout, and physical obstacles.
Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
