8-Port Gigabit PoE+ Switch, Model: GS1008PT


    120 W Power budget & 60 W Maximum One Port

    The total PoE power supported by the PoE port is 120 W, and the maximum for port #1~#2 is 60 W. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.

    Rack Mount & Wall Mount & Desktop

    ● Provide a variety of installation methods for easy deployment in any environment

    ● Support Wall mount installation

    ● Support Desktop installation

    Plug&Play, Fanless design

    Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)

    GS1005P-380x380-1 GS1005P-380x380-2 GS1005P-380x380-3


    Works with IP Cameras for home and office, small business

    VoIP Conference Call

    Works with VoIP phones for business conference

    Wi-Fi Coverage

    Works with WiFi APs for office and business









    Model GS1008PT
    Power Input: AC 100-240V, 50/60Hz
    Ethernet 8 *10/100/1000M PoE Port
    Switching Capacity 16Gbps
    Throughput 11.9Mpps
    Packet Buffer 1.5Mb
    MAC Address 2K
    Jumbo Frame 9216bytes
    Transfer Mode Store and forward

    100000 hour

    Network protocol

    IEEE802.3 (10Base-T)

    IEEE802.3u (100Base-TX)

    IEEE802.3ab (1000Base-TX)

    IEEE802.3x (Flow control)

    PoE Protocol

    IEEE802.3af (15.4W)

    IEEE802.3at (30W)

    IEEE802.3at (4 Pair 60W
    Network Medium

    10Base-T : Cat3、4、5 or above UTP(≤100m)

    100Base-TX : Cat5 or above UTP(≤100m)

    1000Base-TX : Cat5 or aboveUTP(≤100m)
    Working Environment

    Working Temperature:-20~50°C

    Storage Temperature:-40~85°C

    Working Humidity :10%~90%,non-condensing

    Storage Temperature:5%~90%,non-condensing

    Working Height:Maximum10,000 feet

    Storage heigh:Maximum 10,000 feet
    LED Indicators PWR(power supply),Mode(DIP),1-8 Green(Link&Data)


    Un-Light:No Power



    1-8 Green


    Flashing:Data Transmit

    DIP Switch

    VLAN:Port Isolation, 1-6 port is isolated each other, but all can communicate with uplink port 7/8, AI enable

    Default: Normal mode, all port can communicate with each other, The port AI mode is closed.

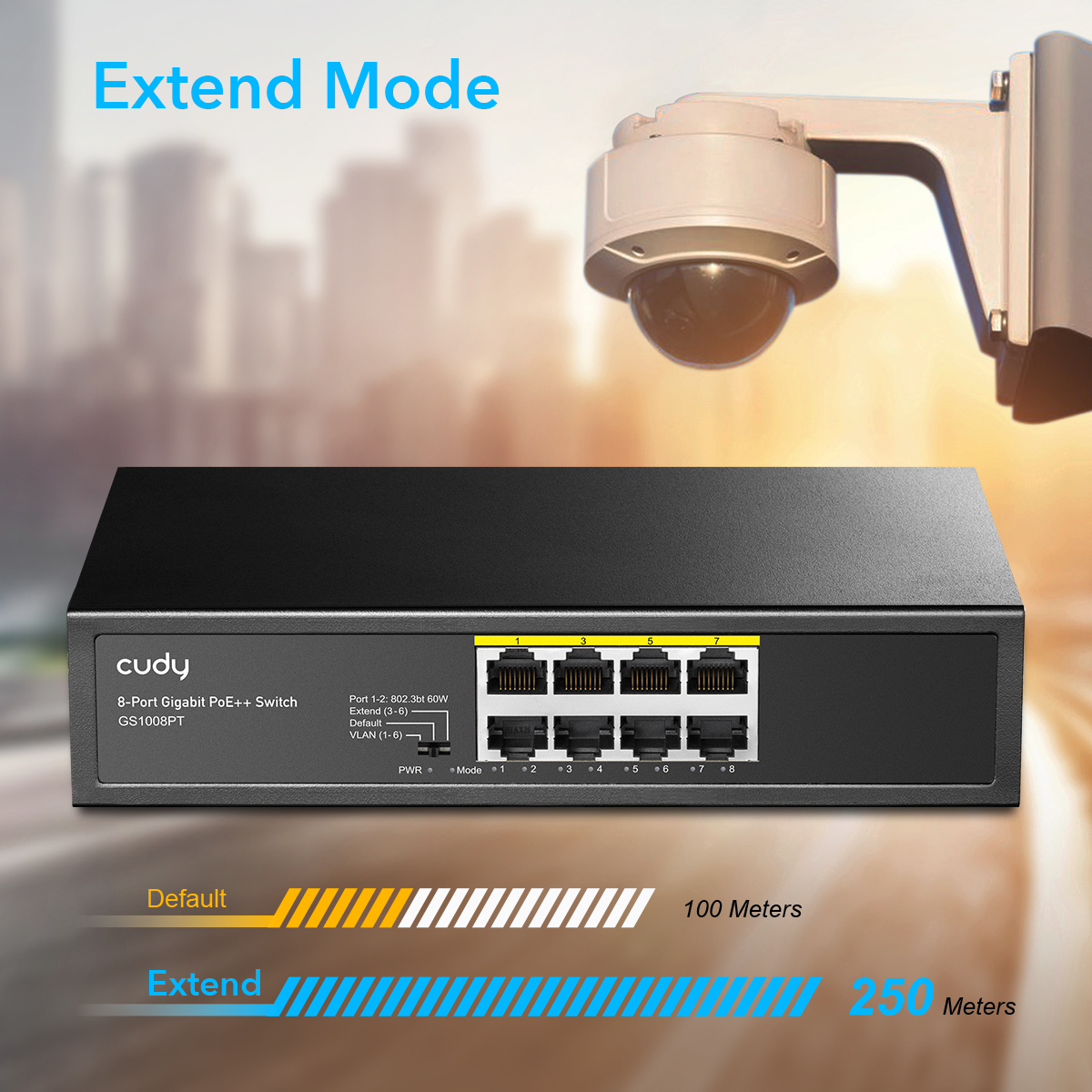

    Extend:Extend Mode, 3-6 port support 250 meters transmission on 10Mbps/s ,AI enable

    Product Dimension 200mm*118mm*44mm
    Package Dimension 245mm*190mm*60mm
    N.W 0.6kg
    G.W 0.9kg
    Packing Info

    Carton MEAS:505*320*402mm

    Packing Qty:20 units

    Packing Weight:19KG
    Package List

    Input Voltage :AC 100-240 V


    Package List Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,


● 120 watts PoE power supply, port #1 maximum 60 watts
● 8 10/100/1000M PoE+/PoE+ ports
● Extend mode support remote PoE feeding up to 250m
● VLAN mode isolate each PoE Ports for security
● Watchdog reactivates the abnormalPD by resuming POE power
● IEEE 802.3at / IEEE 802.3af standard compliant
● Plug&play, simple setup with no configuration needed
