8-Port Gigabit Industrial POE+ Switch Model: IG1008P

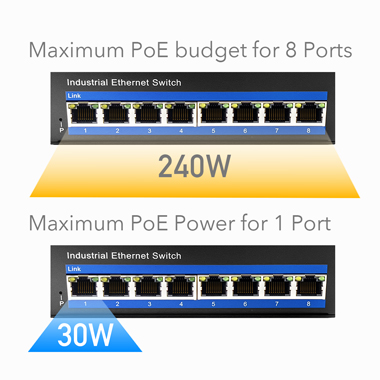

240W Power budget & 30W Maximum One Port
Supports 240W total PoE+ power and up to 30W for one PoE port. Auto-detect power device, will not burn non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard.
Meets IEEE 802.3af/at standard, auto-sensing technology delivers up to 30W to an 802.3at PoE+ device with backward compatibility for 802.3af PoE (15.4W) devices.
Plug&Play, Fanless design
Plug and Play, Easy to use.Fanless design for silent operation.Made of a high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+), 3/6(-).
Dual Power Supply
This industrial Ethernet switch support dual redundant power supply. Each of the power supplies will have the capacity to run the device on its own. This makes sure that the switch could operate normally even if one power supply fails.
Note: This product does not include a power adapter.
Wide Temperature Operation
IG1008P industrial Ethernet switches are designed with wide temperature support to ensure operation reliability in extreme temperatures ranging from -40ºC to 85ºC.
8-Port unmanaged industrial ethernet switch adopts with high strength IP40 protective housing, industrial EMC design to increase the reliability of communication network.
Model IG1008P 10/100BASE-TX Port 8 port RJ-45 auto-MDI / MDI-X PoE Speciﬁcation PoE Standard: IEEE802.3af/ IEEE802.3at PoE ports:1-8 port support PoE Power Output: Max. 15.4 watts (IEEE 802.3af); Max. 30 watts (IEEE 802.3at) PoE port Auto detect AF/AT devices Output Voltage: DC48V Power Pin Assignment:1/2+;3/6- Power Type: End-span( Mid-span optional) Performance Speciﬁcation Bandwidth: 20Gbps
Packet Buffer Memory:2Mbit
Packet Forwarding Rate:15Mpps
MAC Address Table: 8K
Installation DIN rail Maximum Frame Size 9000bytes packet size Flow Control Back pressure for half duplex, IEEE 802.3x pause frame for full duplex Enclosure IP40 aluminum housing LED Indicator Power: Red
Power Input 48 to 57V DC ( Note: This product does not include a power adapter.) Surge protection ±4KV Network Protocols IEEE802.3 10BASE-T;
Network cables 10BASE-T: Cat 3, 4, 5 UTP (≤100 meter)
100BASE-TX: Cat 5 or later UTP (≤10 meter)
1000BASE-TX: Cat 6 or later UTP (≤100 meter)
MTBF >300,000 hours Dimensions (W x D x H) 143.7x103x47.7mm Weight Product Weight: 0.52KG
Packing Weight: 0.62KG
Working Environment Working temperature: -40～85℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 % (no condensation)
● 48V to 57V DC, redundant power input
● -40℃ to 85℃ operating temperature
● IP40 Aluminum housing
● Supports 6KV DC Ethernet ESD protection
● Supports 6KV DC EFT protection for power line
● Free Fall, Shock and Vibration Stability
● DIN-rail and wall-mountable hardware design
